Collets are precision clamping components used to securely hold cutting tools, workpieces, and other cylindrical components during machining. In CNC Machining, one of the most common types is the ER collet, which is designed to work with an ER collet chuck or ER Collet Holder.
An ER collet uses elastic deformation to grip a tool shank evenly around its circumference. This provides stable clamping, good concentricity, and flexibility when different tool diameters need to be used.
ER Collets are available in many sizes, including ER11 collet, ER16 collet, ER20 collet, ER25 collet, ER32 collet, ER40 collet, and ER50 collet. The correct size depends on the required tool diameter, machining operation, and available equipment.

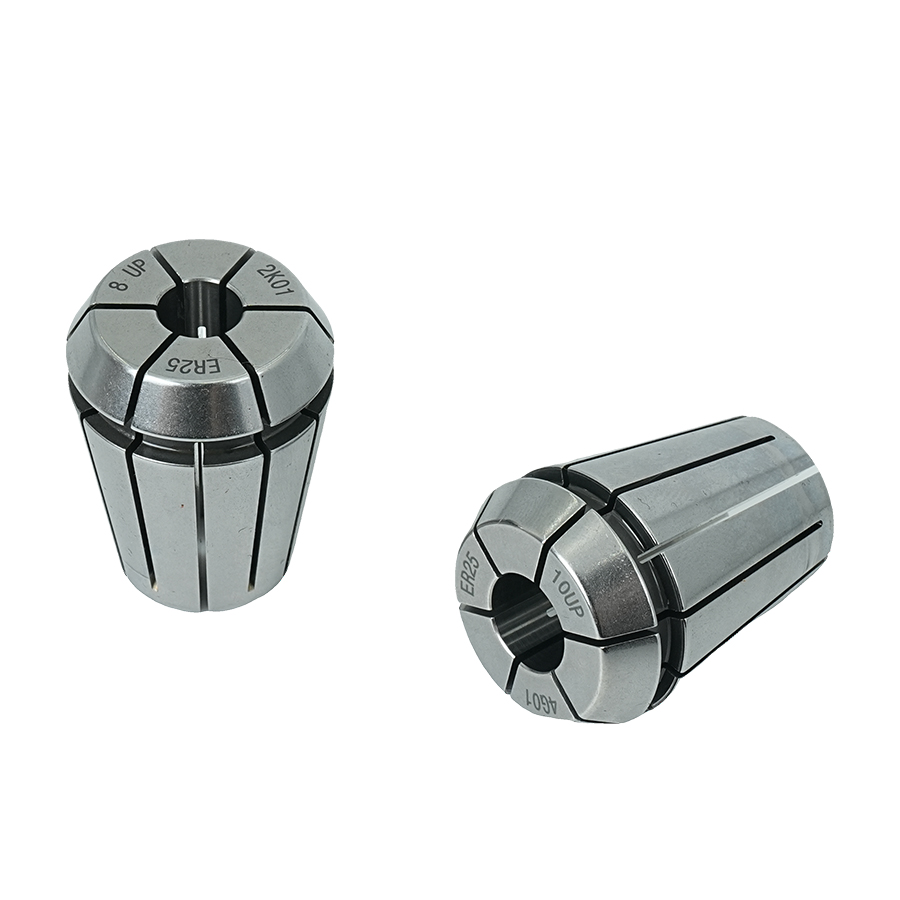

An ER collet is a precision clamping device with a series of slots that allow it to contract around a cutting tool when compressed inside an ER collet chuck.
The basic ER tooling system consists of:
Machine spindle → ER collet chuck → ER collet → Cutting tool
When the collet nut is tightened, the ER collet is pulled into the tapered bore of the chuck. The tapered surfaces force the collet to contract and grip the tool shank.
This simple mechanism allows one ER collet chuck to accommodate a range of cutting tool diameters by using different ER collets.
ER collets are primarily used for tool holding and precision clamping in CNC machining.
Typical applications include:
CNC milling
CNC drilling
Engraving
Reaming
Precision machining
Mold and die manufacturing
Metal component machining
Automotive parts machining
Aerospace component machining
Electronics component machining
An ER collet can securely hold tools such as end mills, drills, reamers, engraving tools, and other cylindrical-shank cutting tools.
Because the collet surrounds the tool shank, it can provide a relatively uniform clamping force compared with some other tool holding methods.
The working principle of an ER collet is based on elastic deformation.
First, the appropriate ER collet is installed into the collet nut. The cutting tool is inserted into the collet, and the assembly is placed into the ER collet chuck.
When the nut is tightened, the collet moves into the tapered internal surface of the chuck. The taper compresses the slotted collet, causing it to contract around the tool shank.
This creates radial clamping force around the tool.
A properly assembled ER system can help provide:
Secure tool clamping
Good concentricity
Stable cutting performance
Reduced tool movement
Convenient tool changes
Flexible tool diameter selection
The actual machining performance depends on the quality of the ER collet, chuck, cutting tool, machine spindle, tightening method, and operating conditions.
ER collets are manufactured in different sizes to accommodate different tool diameters. Some commonly used specifications include ER11, ER16, ER20, ER25, ER32, ER40, and ER50.
An ER11 collet is a compact option for small-diameter cutting tools. It is commonly used for engraving, small CNC machining, drilling, and applications where a compact tool holding system is required.
A collet chuck ER11 system can be useful for precision machining of small components and detailed work.
An ER16 collet is designed for small to medium tool diameters and is widely used in compact CNC machines and precision machining applications.
It provides a balance between compact size and tool holding capability.
An ER20 collet offers a larger clamping range than ER11 and ER16. It can be used for general CNC milling, drilling, engraving, and other machining applications.
An ER20 system is suitable when both flexibility and relatively compact tool dimensions are required.
An ER25 collet is commonly used for medium-sized cutting tools. It can be combined with a suitable ER collet chuck for CNC milling, drilling, and general precision machining.
A collet chuck ER25 configuration can be selected when a machining application requires a larger tool capacity than ER20.
The ER32 collet is one of the widely used sizes for general-purpose CNC machining.
An ER32 system can accommodate larger tool shanks and is suitable for a broad range of milling and drilling applications.
An ER32 collet chuck provides the connection between the machine spindle and ER32 collet, while the collet provides the direct clamping force on the cutting tool.
An ER40 collet is designed for larger tool diameters and applications requiring a higher-capacity ER tooling system.
A collet chuck ER40 can be used for heavier-duty CNC machining where larger cutting tools are required.
An ER50 collet belongs to the larger ER tooling range and is suitable for applications requiring larger tool shank capacities.
When selecting an ER50 system, users should consider the machine spindle, chuck dimensions, tool diameter, required rigidity, and machining conditions.
An ER collet and an ER collet chuck are different components, although they work together as a complete tool holding system.
The ER collet is the flexible clamping component that directly grips the cutting tool.
The ER collet chuck is the holder that contains the collet and connects the clamping system to the machine spindle.
For example:
ER32 collet + ER32 collet chuck = complete ER32 tool holding system
This distinction is important when purchasing CNC tooling because a customer may need both the appropriate collet and compatible chuck.
An ER collet chuck is used to mount and securely hold ER collets and cutting tools in a CNC machine.
It provides the tapered interface required to compress the ER collet and is available in different machine mounting configurations.
Depending on the machine, an ER collet chuck may be designed with different spindle interfaces, such as BT, CAT, HSK, or other mounting standards.
The correct chuck must match the machine spindle as well as the required ER collet size.
ER collet holders are another common term used for tool holding assemblies based on the ER system.
An ER collet holder generally consists of a holder body, ER collet, and collet nut. The holder connects the collet system to the CNC machine, while the collet provides the actual tool clamping function.
The advantage of this system is flexibility. Instead of purchasing a separate holder for every tool diameter, users can change the ER collet according to the cutting tool.
For example, an ER32 holder can be used with different compatible ER32 collets to accommodate different tool shank diameters within the recommended range.
Choosing the correct ER collet is important for machining accuracy and tool stability.
The first consideration is the diameter of the cutting tool shank. The selected ER collet must be compatible with the tool diameter and its recommended clamping range.
Choose the appropriate ER size based on the tool diameter and machining requirements. Smaller systems such as ER11 and ER16 are suitable for compact tooling, while ER32, ER40, and ER50 can accommodate larger tool sizes.
The collet must be compatible with the chuck. For example, an ER32 collet requires a compatible ER32 collet chuck.
For high-speed CNC machining, concentricity, balance, surface finish, and manufacturing accuracy become increasingly important.
Excessive runout can negatively affect tool life, surface finish, and machining accuracy. A high-quality collet and properly matched chuck can help maintain stable tool positioning.
ER collets are popular because they provide a combination of flexibility, clamping performance, and convenient tool changes.
One ER collet chuck can work with multiple compatible collets, allowing users to accommodate different tool diameters without replacing the entire holder.
They are also available in a wide range of sizes, from compact ER11 collet systems to larger ER50 collet configurations.
This makes the ER system suitable for many different CNC machining requirements.
Standard ER collets can meet many common machining requirements, but some applications may require customized dimensions, tolerances, materials, or other specifications.
Working with a custom ER collet manufacturer can provide a solution for applications with specific tool holding or machining requirements.
A professional manufacturer can evaluate requirements such as:
ER collet size
Tool diameter
Clamping range
Overall dimensions
Material
Heat treatment
Surface finish
Concentricity
Dimensional tolerance
Custom packaging
For OEM and industrial customers, direct communication with an ER collet manufacturer can also simplify sampling, technical confirmation, production, and quality inspection.
An ER collet is mainly used to securely clamp cutting tools in CNC machining equipment. It can hold end mills, drills, reamers, engraving tools, and other cylindrical-shank tools.
The ER collet directly grips the cutting tool, while the ER collet chuck holds the collet and connects it to the machine spindle.
An ER32 collet is used for clamping compatible cutting tools in CNC milling, drilling, and other machining applications. It is a popular option for general-purpose machining.
A collet chuck ER25 is a tool holding system designed to accommodate ER25 collets. The chuck compresses the collet to securely hold the cutting tool.
Generally, the ER collet size must match the chuck size. For example, an ER32 collet requires an ER32-compatible chuck. Different tool diameters within the supported range can then be accommodated by selecting the appropriate collet.
Look for an ER collet manufacturer with suitable production capabilities, dimensional control, material options, quality inspection, and experience with CNC tooling. For special requirements, a custom ER collet manufacturer may be a better choice.
ER collets are precision clamping components widely used for holding cutting tools in CNC machining. From the compact ER11 collet and ER16 collet to the larger ER32 collet, ER40 collet, and ER50 collet, different sizes are available for different tool diameters and machining requirements.
Used together with a compatible ER collet chuck or ER collet holder, an ER collet can provide secure tool clamping, good concentricity, and flexible tool selection.
For standard and customized CNC tooling requirements, choosing the right ER collet size, compatible chuck, and reliable manufacturer is essential for achieving stable and precise machining performance.
