Schunk Collet Chuck is a high-precision workholding solution designed for CNC Machining applications that require excellent gripping force, accuracy, and stability. Manufactured by SCHUNK, a globally recognized supplier of clamping technology and automation solutions, Schunk collet chucks are widely used in turning, milling, grinding, and precision machining processes.
With outstanding repeatability, compact design, and reliable clamping performance, Schunk Collet Chuck helps improve machining accuracy, reduce vibration, and enhance production efficiency. It is commonly applied in industries such as automotive, aerospace, medical equipment, precision engineering, and mold manufacturing.

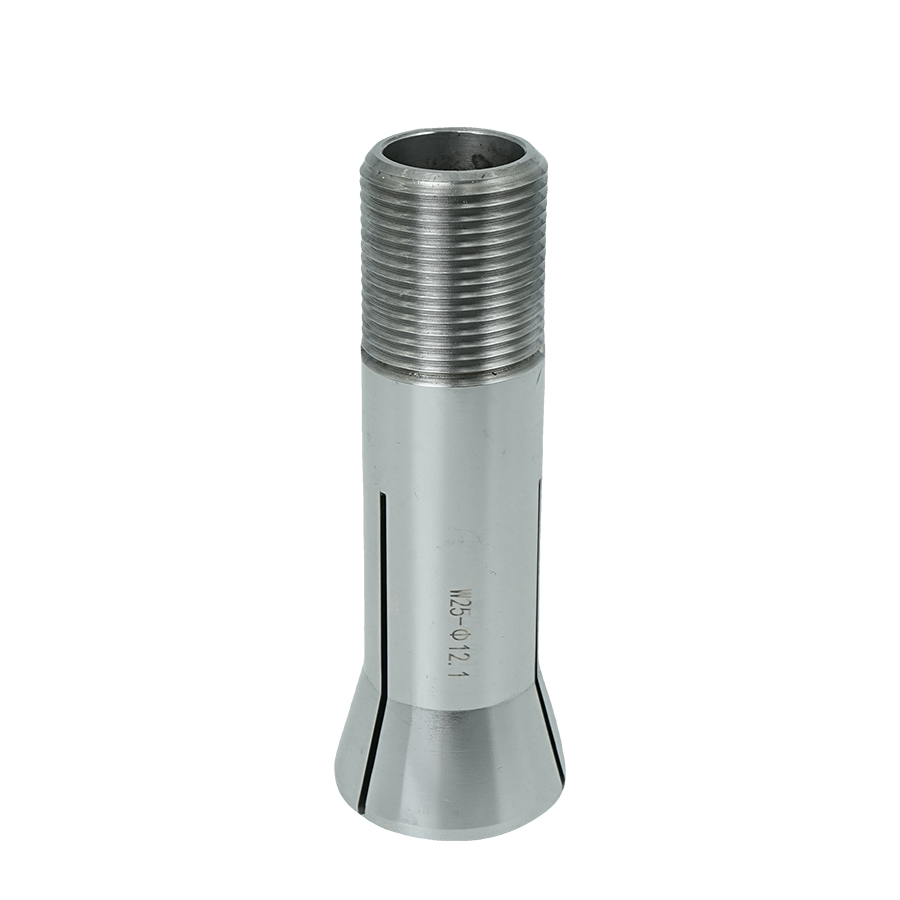

A Schunk Collet Chuck is a precision clamping device used to securely hold workpieces or cutting tools during machining operations. It uses a collet mechanism that contracts around the workpiece when clamping force is applied, creating a strong and uniform grip.
Unlike traditional chuck systems, Schunk collet chucks provide better concentricity and reduced deformation, making them suitable for machining small and precision components.
A typical Schunk collet chuck consists of:
Chuck body
Collet
Clamping mechanism
Pull-back system
Mounting interface
The collet provides even pressure distribution around the workpiece, ensuring stable positioning during high-speed machining.
The workpiece is inserted into the collet opening. The collet size is selected according to the diameter of the component.
When the chuck is activated, the collet moves and contracts around the workpiece, creating radial clamping force.
The uniform gripping force prevents movement, vibration, and workpiece displacement during cutting operations.
After machining, the clamping system releases the collet, allowing quick removal and replacement of parts.
This simple but precise mechanism allows Schunk Collet Chuck systems to achieve high accuracy and repeatable machining performance.
One of the main advantages of Schunk Collet Chuck is its excellent concentricity.
High precision clamping helps:
Improve machining accuracy
Reduce dimensional errors
Maintain consistent part quality
This makes it ideal for applications requiring tight tolerances.
Schunk collet chucks provide reliable gripping force while minimizing workpiece deformation.
The balanced clamping force is especially beneficial for thin-wall or precision components.
During high-speed machining, vibration can affect surface quality and tool life.
The rigid structure and stable clamping performance of Schunk collet chucks help reduce vibration and improve machining results.
The efficient clamping design allows faster loading and unloading, reducing machine downtime and improving productivity.
Manufactured with high-quality materials and precision processes, Schunk collet chucks provide excellent durability for demanding machining environments.
Schunk collet chucks are widely used in CNC turning operations for holding:
Shafts
Pins
Bushings
Precision cylindrical parts
They provide excellent grip and accuracy during high-speed rotation.
In milling applications, Schunk collet chuck systems help secure components and maintain stable positioning during machining.
The automotive industry uses precision workholding systems for manufacturing:
Engine components
Transmission parts
Precision shafts
Fasteners
Aerospace components require extremely high accuracy and reliability. Schunk collet chucks support the production of complex and precision-machined parts.
Medical components often require tight tolerances and excellent surface finishes. High-Precision Collet Chucks help achieve consistent machining quality.
The precision clamping structure ensures accurate positioning and repeatability.
Uniform clamping pressure prevents excessive force on delicate components.
Fast clamping and releasing reduce setup time and improve machining productivity.
Stable workpiece holding reduces vibration and improves the final surface finish.
Schunk collet chucks can be integrated with CNC machines and automated manufacturing systems for continuous production.
| Feature | Schunk Collet Chuck | Standard Chuck |
|---|---|---|
| Precision | High | Moderate |
| Concentricity | Excellent | Lower |
| Clamping Force Distribution | Uniform | Variable |
| Workpiece Deformation | Low | Higher |
| High-Speed Machining | Suitable | Limited |
| Application | Precision machining | General machining |
For applications requiring high accuracy and repeatability, Schunk collet chucks provide significant advantages over conventional chuck systems.
Manual collet chucks are operated by hand and are suitable for smaller production runs or flexible machining applications.
Hydraulic systems provide smooth and consistent clamping force, making them suitable for precision machining.
Pneumatic collet chucks use compressed air for fast automatic clamping and are commonly used in automated production lines.
CNC collet chuck systems are designed for integration with CNC machines, providing high accuracy and efficient operation.
Select a collet chuck that matches the diameter and shape of the workpiece.
Different machining operations require different levels of rigidity, precision, and clamping force.
Ensure the chuck is compatible with the CNC lathe, milling machine, or machining center.
For high-volume manufacturing, automated hydraulic or pneumatic systems may provide better efficiency.
A professional machining tool supplier can provide suitable Schunk collet chuck solutions based on application requirements.
A Schunk collet chuck is used for securely holding workpieces or tools during CNC Machining operations such as turning, milling, and precision manufacturing.
Schunk collet chucks provide high accuracy, stable clamping force, reduced vibration, and excellent repeatability for precision machining.
They are widely used in automotive, aerospace, medical, electronics, and precision manufacturing industries.
A collet chuck provides uniform gripping around the workpiece, reducing movement and improving concentricity during machining.
Yes. Schunk collet chucks are commonly integrated with CNC turning centers, milling machines, and automated manufacturing systems.
