In modern CNC Machining, choosing the right tool holding solution is essential for achieving high accuracy, stable cutting performance, and longer tool life. A Hydraulic Tool Holder is a precision clamping device used to securely hold cutting tools in CNC machines while reducing vibration and improving machining quality.
So, what is a hydraulic tool holder used for? A hydraulic tool holder is mainly used for clamping cutting tools during CNC milling, drilling, reaming, and finishing operations. By using a Hydraulic Clamping System, it provides uniform gripping force around the tool shank, minimizes tool runout, and improves machining stability.
Due to its excellent precision and vibration damping performance, Hydraulic Tool Holders are widely used in industries such as aerospace, automotive, mold manufacturing, medical equipment, and high-precision CNC machining.

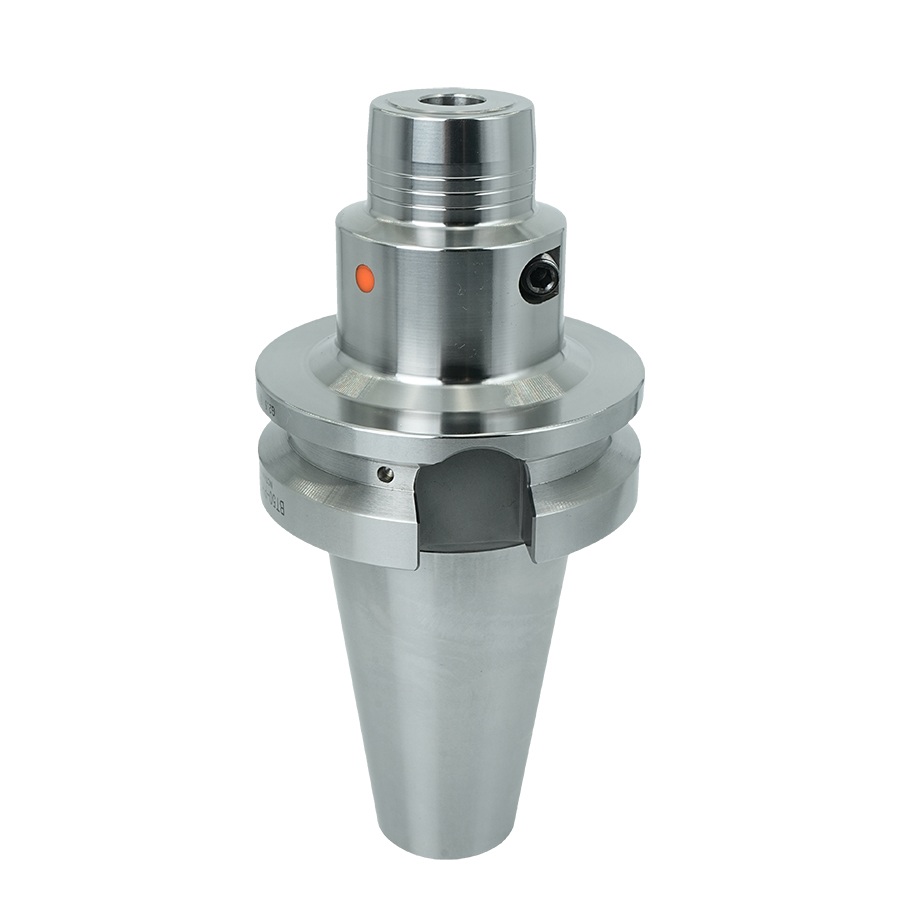

A Hydraulic Tool Holder is a CNC tool holding device that uses hydraulic pressure to clamp a cutting tool with high precision.
Unlike traditional mechanical collet chucks, a hydraulic holder uses a sealed hydraulic chamber inside the holder body. When the clamping screw is tightened, hydraulic pressure is generated and evenly distributed around the tool shank.
This Hydraulic Clamping System creates a stable 360° grip, helping the cutting tool maintain accurate positioning during high-speed machining.
A hydraulic tool holder is designed to provide:
Low tool runout
High concentricity
Excellent vibration damping
Stable cutting performance
Longer tool life
A Hydraulic Tool Holder is mainly used for holding and stabilizing cutting tools in CNC machining applications. Its purpose is to improve tool accuracy, reduce vibration, and ensure consistent machining results.
The main applications include CNC milling, drilling, precision finishing, mold machining, and high-speed manufacturing.
One of the most common applications of a hydraulic tool holder is CNC milling.
During milling operations, cutting forces can cause tool vibration and deflection, especially when using long tools or machining hard materials.
A hydraulic holder provides strong and uniform clamping force, helping to:
Improve milling stability
Reduce cutting vibration
Maintain tool accuracy
Achieve better surface finish
It is commonly used with:
End mills
Carbide milling cutters
Ball nose cutters
Finishing tools
For precision milling applications, a Hydraulic End Mill Holder provides excellent rigidity and reliable tool positioning.
A major application of hydraulic tool holders is high-speed CNC machining.
When spindle speeds increase, even small tool imbalance or vibration can affect machining quality. The internal hydraulic mechanism helps maintain stable tool rotation by reducing runout and absorbing vibration.
Hydraulic holders are suitable for:
High-speed milling
Precision cutting
Fine finishing
Automated CNC production
Compared with standard mechanical holders, a Hydraulic Chuck provides better dynamic performance during high-speed operations.
Precision finishing requires excellent tool stability and accurate positioning.
A hydraulic tool holder helps achieve high-quality finishing by reducing:
Tool movement
Vibration marks
Surface defects
Machining errors
It is widely used for:
Mold cavities
Precision components
Optical parts
High-tolerance mechanical parts
The low runout performance of hydraulic holders makes them ideal for applications where surface quality is critical.
Hydraulic tool holders are also used for precision drilling and reaming operations.
Stable tool clamping helps maintain the correct cutting position and improves hole accuracy.
Typical applications include:
Precision drilling
Hole finishing
Reaming operations
Boring processes
The improved concentricity provided by hydraulic holders helps reduce dimensional errors and improves machining consistency.
Mold and die manufacturing requires extremely high precision and excellent surface quality.
A hydraulic tool holder is commonly used for:
Deep cavity machining
Contour milling
Precision finishing
Complex mold components
The excellent vibration damping capability of hydraulic holders helps manufacturers achieve smoother surfaces and reduce the need for additional finishing processes.
The aerospace industry requires machining solutions with high accuracy and reliability.
Hydraulic tool holders are used for machining:
Titanium components
Aluminum aircraft parts
Aerospace structural components
Because aerospace materials can be difficult to machine, stable tool clamping is essential for maintaining accuracy and extending cutting tool life.
In automotive production, hydraulic holders support high-volume CNC machining processes.
Common applications include machining:
Engine components
Transmission parts
Aluminum housings
Precision automotive parts
Their consistent clamping performance helps improve production efficiency and reduce tool replacement frequency.
Medical components often require extremely tight tolerances and excellent surface finishes.
Hydraulic tool holders are used for machining:
Surgical instruments
Medical implants
Precision stainless steel components
The high precision and vibration control of hydraulic holders make them suitable for demanding medical manufacturing applications.
Compared with conventional mechanical holders, hydraulic tool holders provide several advantages.
The Hydraulic Clamping System distributes pressure evenly around the tool shank, reducing tool movement during machining.
Hydraulic holders typically achieve very low runout accuracy, often within 3 μm, improving machining precision.
The hydraulic mechanism absorbs cutting vibration, resulting in:
Better surface finish
Longer tool life
More stable machining performance
Unlike shrink-fit systems, hydraulic holders do not require heating equipment.
Operators can change tools quickly using a simple Allen key, reducing machine downtime.
Different CNC machines require different spindle interfaces and tool holding solutions.
A BT Hydraulic Tool Holder is commonly used in CNC machining centers with BT spindle systems.
Applications include:
CNC milling
General machining
Precision production
An HSK Hydraulic Tool Holder is designed for high-speed machining centers requiring excellent rigidity and positioning accuracy.
It is widely used in:
Aerospace machining
Automotive manufacturing
Precision engineering
Hydraulic CAT40 Holders are commonly used in CNC machines with CAT40 spindle interfaces.
They provide reliable clamping performance for:
Milling operations
Production machining
Precision manufacturing
A hydraulic tool holder improves CNC machining performance by providing stable and accurate tool clamping.
The benefits include:
Improved machining accuracy
Reduced vibration
Better surface quality
Longer cutting tool life
More consistent production results
For manufacturers using a CNC Machine Hydraulic System, hydraulic holders provide an effective solution for improving overall machining efficiency.
