What Is A Tool Holder in A Cnc Machine And How It Works

A tool holder in CNC machine systems is a critical component that connects the cutting tool to the spindle,ensuring stability,precision,and efficiency during machining operations.It plays a key role in maintaining accuracy,reducing vibration,and improving overall surface finish in CNC manufacturing processes.

A CNC tool holder works by securely clamping the cutting tool using a precise locking mechanism.This strong grip prevents tool movement during high-speed rotation,allowing the machine to perform milling,drilling,or turning operations with consistent accuracy.Different designs are used depending on the machining requirements and spindle type.

Among the most common types are the ER collet tool holder,BT Tool Holder,and CAT tool holder.Each type offers unique advantages in terms of rigidity,balance,and compatibility with different CNC machines.For example,ER Collets are widely used for general-purpose machining,while BT and CAT holders are preferred in high-speed industrial applications.

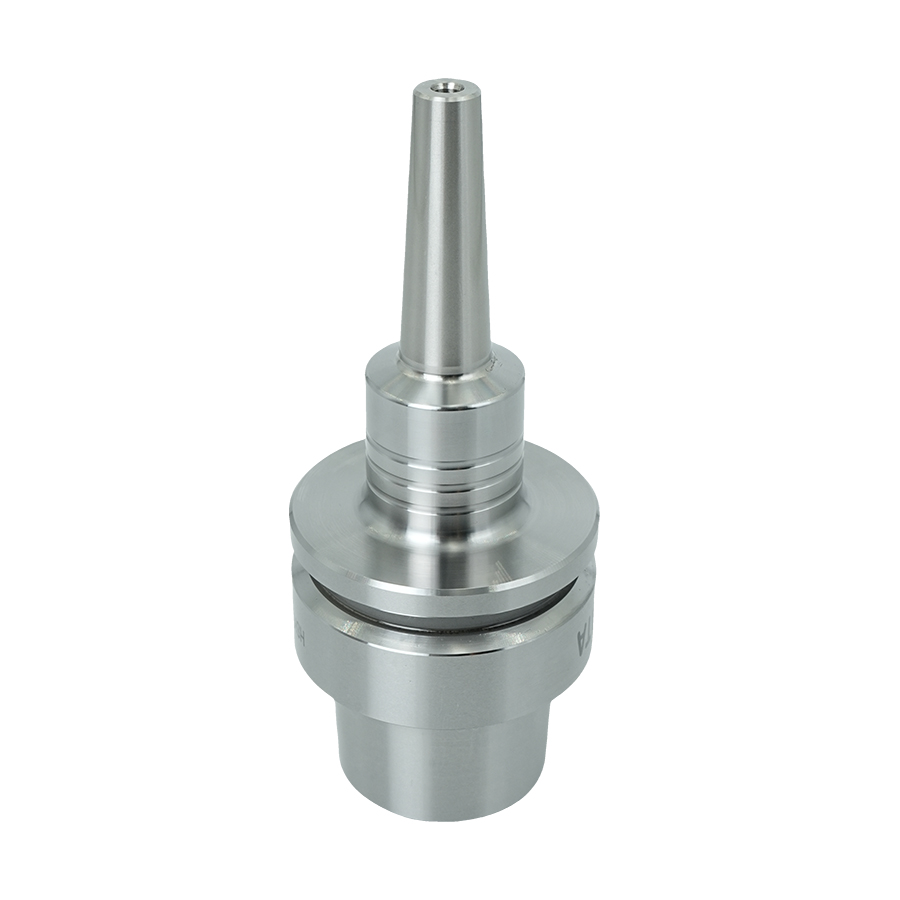

In advanced manufacturing environments,HSK Tool Holders are often used due to their high precision and excellent performance in high-speed machining.These holders provide better tool stability and reduce vibration,making them ideal for aerospace and automotive production.

For specialized requirements,manufacturers also offer custom CNC tool holders designed for specific machining tasks.These solutions improve productivity and ensure optimal tool performance in complex operations.

Overall,the tool holder in CNC machine is essential for achieving precision,efficiency,and reliability in modern manufacturing.Choosing the right type of tool holder directly impacts tool life,machining accuracy,and production quality.
