What Is an HSK Tool Holder?

In modern CNC machining, HSK Tool Holders play a critical role in achieving high-speed, high-precision, and stable cutting performance. Designed for advanced machining centers, the HSK tooling system provides superior rigidity, repeatability, and balance compared to traditional taper systems.

What Is an HSK Tool Holder?

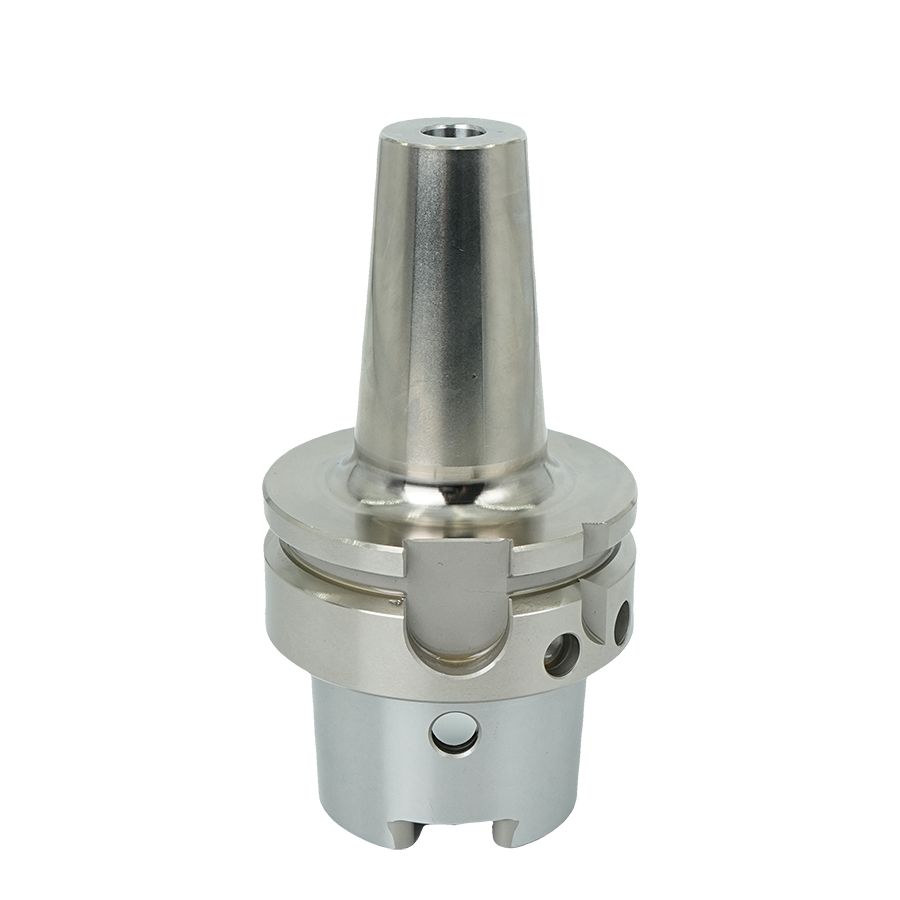

An HSK Tool Holder (Hohl Shaft Kegel holder) is a hollow taper tool interface widely used in high-speed CNC machining. Unlike conventional holders, the HSK system achieves dual contact between the spindle face and taper, ensuring exceptional accuracy and stability.

A typical tool holder HSK connection offers:

• High rotational accuracy

• Excellent rigidity at high speeds

• Improved vibration damping

• Fast automatic tool change compatibility

Because of these advantages, tool holders HSK are widely used in aerospace, automotive, mold manufacturing, and precision machining industries.

HSK Tool Holder Design and Structure

The advanced HSK tool holder design features a hollow shank that expands slightly during clamping, creating both taper and face contact with the spindle.

Key design advantages include:

• Higher clamping force under rotation

• Reduced runout error

• Improved tool life

• Stable machining at high RPM

Modern machining centers rely heavily on the OEM HSK tooling system for consistent performance.

HSK Tool Holder Types

Understanding HSK tool holder types helps users choose the correct system based on machining requirements.

Tool Holders HSK-A

Tool holders HSK-A are the most common type used in general machining centers. They support automatic tool change and provide excellent rigidity for milling and drilling operations.

Tool Holder HSK-E

The tool holder HSK-E and tool holders HSK-E are optimized for high-speed machining, offering lighter construction and improved balance for precision applications.

Tool Holders HSK-F

Tool holders HSK-F are typically used in woodworking and high-speed cutting environments.

Each holder HSK type is designed for specific spindle standards and applications.

HSK Tool Holder Sizes

Selecting the correct HSK tool holder sizes is essential for machining efficiency.

Common sizes include:

• HSK 40 tool holder – compact machining centers

• HSK 80 tool holder – medium-duty machining applications

• HSK 100 tool holders – heavy-duty cutting and large machines

Proper size selection ensures optimal cutting performance and spindle compatibility.

HSK Heat Shrink Holders

HSK heat shrink holders are advanced tooling solutions used for high-precision machining. The tool is clamped through thermal expansion, providing:

• Extremely low runout

• Strong gripping force

• Superior balance at high speed

These HSK toolholders are widely used for mold machining and aerospace components.

Advantages of a High Quality HSK Tooling System

A high quality HSK tooling system offers multiple benefits:

• High-speed machining capability

• Improved surface finish

• Longer tool and spindle life

• Reduced vibration during cutting

• Excellent repeatability for automated production

Many manufacturers adopt tool holders HSK to improve productivity and machining accuracy.

OEM HSK Tooling System Solutions

Professional HSK tool holder manufacturers provide complete OEM HSK tooling system solutions including:

• Custom tool holder design

• Precision balancing

• Surface treatment and coating

• Customized tool interfaces

• Application engineering support

Working with experienced HSK tooling system manufacturers ensures long-term reliability and stable machining performance.

Applications of HSK Tool Holders

Modern HSK tool systems are widely used in:

• Aerospace machining

• Automotive manufacturing

• Mold and die production

• Precision medical parts

• High-speed aluminum machining

• CNC milling centers

From standard HSK Holders to specialized heat shrink solutions, these systems support advanced manufacturing requirements.

HSK Tooling System Price Considerations

The HSK tooling system price depends on several factors:

• Tool holder type (HSK-A, HSK-E, HSK-F)

• Holder size (HSK40, HSK80, HSK100)

• Material quality and balancing grade

• Heat shrink or standard clamping design

• OEM customization requirements

Investing in high-quality tooling reduces long-term operational costs through improved durability and machining efficiency.

HSK tool holders have become the industry standard for high-speed precision machining. With various HSK tool holder types, sizes, and specialized designs such as HSK heat shrink holders, manufacturers can achieve superior accuracy, stability, and productivity.

Choosing reliable HSK tool holder manufacturers and a high quality HSK tooling system ensures optimal performance across modern CNC machining applications.
