Hydraulic Tool Holders are precision tool-holding components designed to securely clamp cutting tools during CNC machining. By using hydraulic pressure to generate uniform clamping force around the tool shank, hydraulic tool holders can provide high concentricity, stable tool holding, and reliable machining performance.
A complete Hydraulic Clamping System can be used with CNC milling machines, machining centers, and other high-precision machine tools. Depending on the machine spindle and tooling requirements, options such as HSK Hydraulic Tool Holder and BT Hydraulic Tool Holder are available for different machining applications.
Hydraulic Tool Holders use an internal hydraulic mechanism to clamp the cutting tool. When the hydraulic chamber is pressurized, the internal sleeve or diaphragm applies uniform radial pressure around the tool shank.
Compared with conventional mechanical clamping methods, hydraulic clamping distributes pressure more evenly around the tool. This can help improve tool stability, reduce runout, and support consistent machining performance.
Hydraulic tool holders can be used with various cutting tools, including:
End mills
Drills
Reamers
Ball nose cutters
Carbide cutting tools
Precision milling tools
A Hydraulic Clamping System is designed to provide secure and accurate tool clamping for CNC machining operations.
The system typically includes a hydraulic tool holder, clamping mechanism, machine spindle interface, and compatible cutting tool. The hydraulic chamber generates clamping pressure around the tool shank, helping maintain tool position during high-speed machining.
Key advantages include:
Uniform radial clamping
High tool concentricity
Good vibration control
Stable tool positioning
Quick tool changes
Suitable for precision machining
The actual performance depends on the tool holder design, machine conditions, tool geometry, cutting parameters, and correct installation.
A Hydraulic Chuck is a hydraulic tool holder designed to clamp cutting tools with hydraulic pressure. The term Hydraulic Chucks is commonly used when referring to multiple hydraulic tool holders or different chuck configurations.
Hydraulic chucks are widely used in CNC machining because they can provide accurate tool positioning while reducing uneven clamping forces on the tool shank.
A hydraulic chuck can be suitable for applications requiring:
High machining accuracy
Low radial runout
Stable tool holding
High-speed machining
Fine surface finishes
Reduced vibration
CNC Hydraulics refers broadly to hydraulic technologies used in CNC machine tools and machining systems. Within tooling applications, a CNC Hydraulic Chuck is specifically designed for precision cutting-tool clamping.
A CNC Hydraulic Chuck can be integrated into CNC machining processes where tool stability and positioning accuracy are important.
When selecting a hydraulic chuck for CNC equipment, manufacturers should consider:
Machine spindle interface
Tool shank diameter
Required clamping range
Machining speed
Required runout
Tool length
Cutting conditions
Cooling requirements

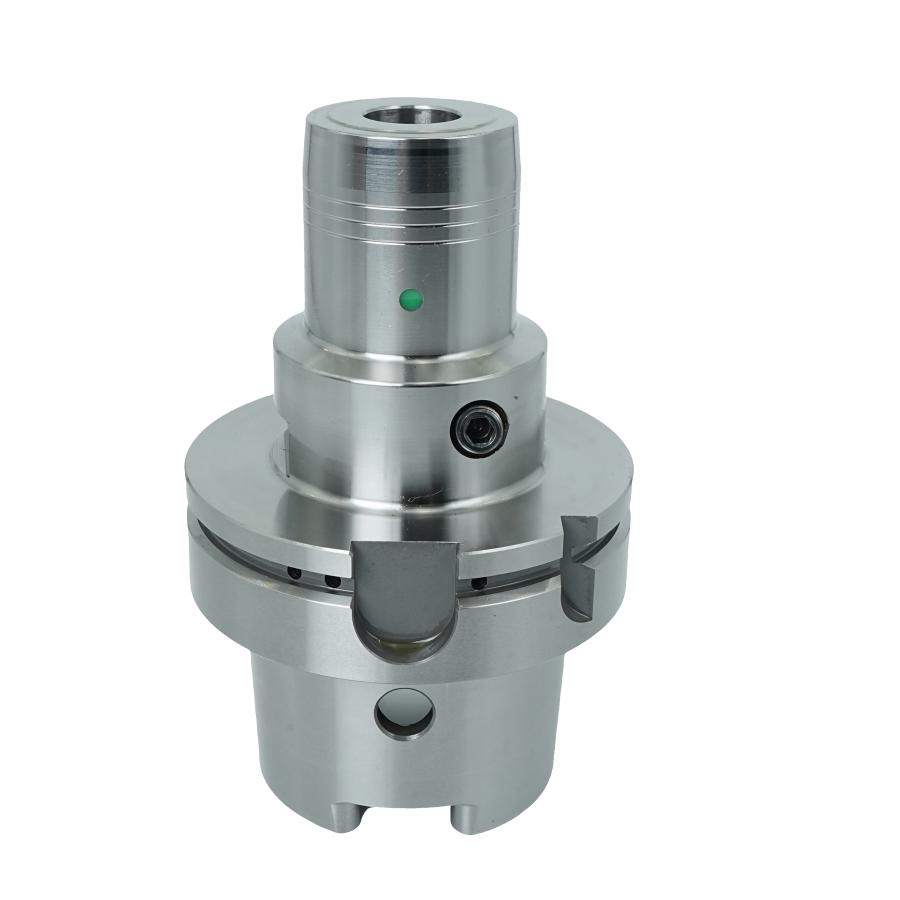

An HSK Hydraulic Tool Holder is designed with an HSK spindle interface for CNC machine tools using the HSK tooling standard.
HSK tooling systems are commonly used in high-speed and precision machining because the hollow-shank interface provides a rigid and accurate connection between the tool holder and machine spindle.
An HSK Hydraulic Tool Holder combines the HSK interface with hydraulic tool clamping technology, making it suitable for applications where accurate tool positioning and stable machining are required.
Typical applications include:
High-speed milling
Precision machining
Mold machining
Aerospace component machining
Automotive component machining
Complex CNC machining
The specific HSK type should be selected according to the machine spindle and tooling specification.
A BT Hydraulic Tool Holder uses a BT spindle interface and hydraulic clamping mechanism. BT tooling is widely used with CNC machining centers.
The hydraulic clamping mechanism provides uniform pressure around the cutting tool, while the BT interface connects the tool holder to the machine spindle.
BT Hydraulic Tool Holder options can be selected according to the machine model, tool size, cutting conditions, and required machining accuracy.
A complete Hydraulic Tooling System can include hydraulic tool holders, cutting tools, machine spindle interfaces, adapters, and supporting accessories.
The system is designed to maintain a stable connection between the CNC machine and cutting tool throughout the machining process.
For precision applications, a properly matched hydraulic tooling system can help address issues such as:
Tool runout
Tool vibration
Inconsistent tool positioning
Poor surface finish
Reduced tool life
Machining instability
Correct tool selection and proper installation are important to achieve the expected performance.
Hydraulic pressure distributes the clamping force around the tool shank, helping maintain accurate tool positioning.
A properly designed and correctly installed hydraulic holder can provide low radial runout, which is important for precision machining.
Uniform clamping can improve tool stability and help reduce vibration during machining, particularly when machining parameters and tool geometry are properly matched.
Hydraulic tool holders can simplify tool replacement compared with some traditional mechanical clamping systems.
Hydraulic tool holders can be used in high-speed CNC machining applications when the holder is properly balanced and rated for the required operating conditions.
A CNC Machine Hydraulic System can refer to the hydraulic systems used throughout CNC equipment, including workholding, machine functions, and specialized tooling applications.
It is important to distinguish a machine hydraulic system from a hydraulic tool holder. A hydraulic tool holder has an integrated clamping mechanism specifically designed to secure a cutting tool, while a CNC machine hydraulic system may provide hydraulic power for other machine functions.
For tooling applications, the hydraulic tool holder itself generates the required clamping action through its internal hydraulic mechanism.
The CNC Hydraulic Chuck Price can vary depending on the holder type, spindle interface, size, precision requirements, material, manufacturing quality, and additional specifications.
Factors that may influence hydraulic chuck pricing include:
HSK or BT interface
Tool diameter
Hydraulic clamping range
Accuracy requirements
Maximum operating speed
Balance grade
Manufacturing precision
Custom specifications
Order quantity
When comparing CNC Hydraulic Chuck Price, it is useful to evaluate the complete specifications rather than comparing price alone. Tool holder accuracy, compatibility, service life, and machining requirements can all affect the overall value of the tooling system.
Hydraulic Tool Holders are used in many precision machining environments.
Hydraulic holders can be used for milling operations where tool stability and dimensional accuracy are important.
They can support precision machining of molds, dies, cavities, and other complex components.
Hydraulic chucks can be used for machining automotive components that require repeatable dimensional accuracy.
For aerospace components with demanding machining requirements, suitable hydraulic tooling can provide stable tool holding and precision positioning.
Hydraulic tool holders can also be used for precision machining of selected medical components and instruments.
Choosing the correct Hydraulic Tool Holder requires matching the holder to both the CNC machine and cutting tool.
Consider the following factors:
Machine Spindle: Confirm whether the machine requires an HSK, BT, or another spindle interface.
Tool Shank: Check the cutting tool diameter and shank type to ensure compatibility with the hydraulic holder.
Machining Speed: Select a holder suitable for the required spindle speed and machining conditions.
Precision: Consider the required radial runout and dimensional accuracy.
Tool Length: The holder geometry should match the required tool length and machining accessibility.
Application: Milling, drilling, finishing, mold machining, and high-speed machining may require different tooling configurations.
Balance: For high-speed applications, the dynamic balance specification should be appropriate for the operating speed.
A Hydraulic Tool Holder is a precision tool holder that uses an internal hydraulic mechanism to clamp a cutting tool around its shank.
A Hydraulic Chuck is used to securely hold cutting tools in CNC machines. It can provide uniform clamping, good concentricity, and stable tool positioning.
The main difference is the machine spindle interface. An HSK Hydraulic Tool Holder is designed for HSK spindles, while a BT Hydraulic Tool Holder is designed for BT spindle interfaces.
Suitable hydraulic chucks can be used for high-speed machining when their rated speed, balance, machine spindle, cutting tool, and machining conditions are properly matched.
CNC Hydraulic Chuck Price depends on factors such as holder type, spindle interface, size, accuracy, balance requirements, manufacturing quality, and order quantity.
A Hydraulic Tooling System is a tooling solution that uses hydraulic clamping technology to securely hold cutting tools for CNC machining applications.
Select the holder according to the CNC machine spindle interface, tool shank diameter, machining speed, required precision, tool length, cutting conditions, and application requirements.
