How Does HSK Tool Holder Work

HSK Tool Holders are high-precision devices widely used in CNC machining to secure cutting tools, providing superior stability, accuracy, and performance. They are designed to operate at high spindle speeds while maintaining excellent tool alignment, making them ideal for milling, drilling, and high-speed machining applications.

What is HSK Tool Holder?

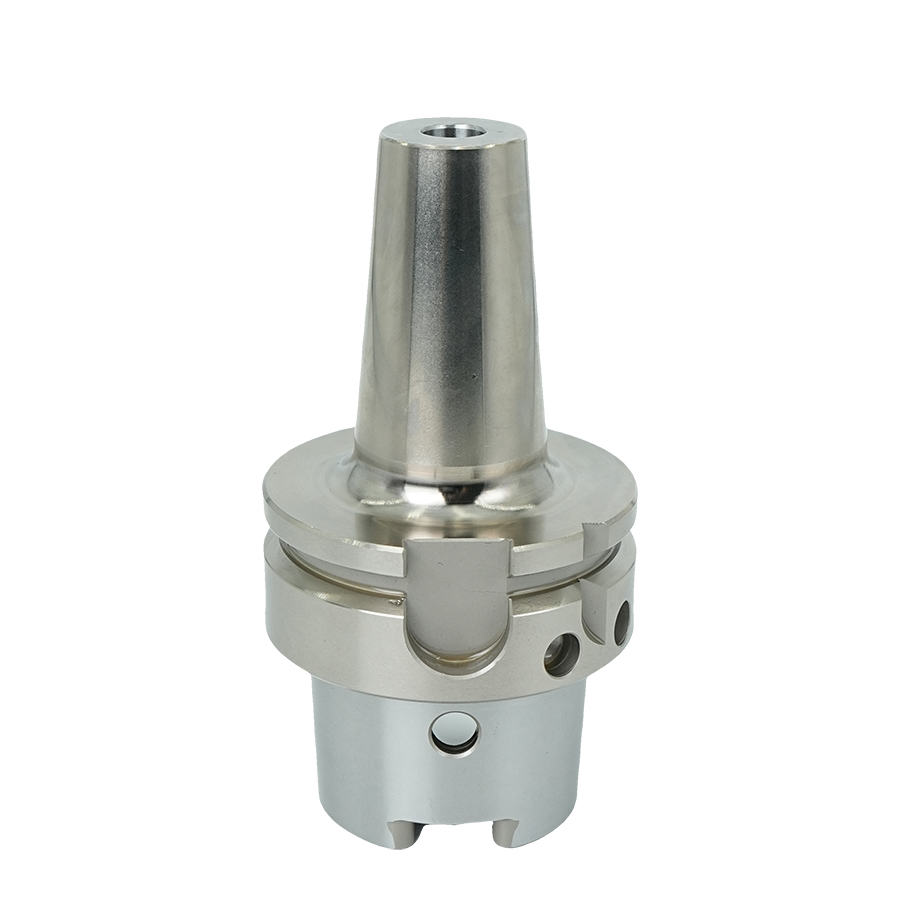

What is HSK Tool Holder? An HSK Tool Holder (Hohl-Schaft-Kegel or hollow shank taper) is a type of tool holding system that features a hollow tapered shank. Unlike conventional tool holders, it provides dual contact — both axial and radial — between the spindle and the tool holder. This dual contact improves rigidity, reduces vibration, and ensures higher machining precision.

HSK tool holders are commonly used in industries requiring high-speed, high-accuracy machining, such as aerospace, automotive, mold-making, and electronics manufacturing.

Types of HSK Tool Holders

1. Collet Holders

• Collet holders are designed to grip cutting tools of various diameters tightly.

• They provide precise alignment and high concentricity, ensuring smooth operation and minimal runout.

2. HSK Hydraulic Tool Holder

• HSK Hydraulic Tool Holder uses hydraulic pressure to clamp the tool firmly.

• Offers excellent vibration damping and rigidity, making it suitable for heavy-duty machining or high-torque applications.

3. HSK E32 Tool Holder

• A standard HSK size widely used for medium-duty milling and drilling operations.

• Provides stable tool clamping and repeatable accuracy for various CNC machines.

4. Best HSK Tool Holders

• High-quality best HSK tool holders combine precise engineering, durable materials, and optimal performance.

• Trusted by professionals for demanding machining environments requiring high precision and repeatability.

How HSK Tool Holders Work

The working principle of an HSK tool holder involves several steps:

1. Tool Insertion

• The cutting tool is inserted into the holder, typically using a collet or hydraulic clamping system.

2. Engagement with Spindle

• The hollow taper of the HSK tool holder makes contact with both the spindle face and taper.

• This dual contact distributes forces evenly, reduces deflection, and minimizes vibration during high-speed operation.

3. Locking Mechanism

• For standard holders, the drawbar pulls the HSK holder into the spindle to lock it securely.

• For HSK Hydraulic Tool Holders, hydraulic pressure clamps the tool in place, providing additional rigidity and vibration damping.

4. Machining Operation

• With the tool securely held, CNC machines can operate at high speeds with minimal runout.

• The precise alignment ensures improved surface finish, longer tool life, and better repeatability.

Advantages of HSK Tool Holders

• High precision and stability at high spindle speeds

• Reduced vibration and improved surface finish

• Quick and easy tool changes for increased productivity

• Compatible with various tools, collet holders, and hydraulic holders

• Extended tool life due to stable clamping and minimal deflection

Applications of HSK Tool Holders

• Milling and Drilling: High-speed CNC machining for metal and composite materials

• Aerospace Industry: Precision machining of complex components

• Automotive Manufacturing: Engine parts, molds, and precision structural components

• Mold Making: High-accuracy injection mold and die machining

• Electronics: Machining of housings and components requiring tight tolerances

Choosing the right HSK tool holder, such as collet holders, HSK Hydraulic Tool Holders, HSK E32 tool holders, or the best HSK tool holders, ensures accuracy, stability, and efficiency in every CNC machining operation. Understanding what is HSK tool holder and its working principle is key to optimizing tool performance and improving machining productivity.
