What Are Hydraulic Tool Holders?

In modern CNC machining, tool holder accuracy directly affects machining quality, tool life, and production efficiency. Among the various tool holding systems available today, Hydraulic Tool Holders are widely recognized for their superior clamping accuracy, vibration damping capabilities, and exceptional machining performance.

Whether used for high-speed milling, precision finishing, or heavy-duty machining, BT Hydraulic Tool Holders, HSK Hydraulic Tool Holders, and BBT Hydraulic Tool Holders provide reliable solutions for manufacturers seeking maximum productivity and precision.

What Are Hydraulic Tool Holders?

Hydraulic Tool Holders utilize hydraulic pressure technology to securely clamp cutting tools. Inside the holder, a hydraulic chamber applies uniform pressure around the tool shank, creating highly accurate and stable tool positioning.

Compared with traditional collet chucks, hydraulic holders offer several advantages:

• Superior runout accuracy

• Excellent vibration damping

• Improved surface finish quality

• Extended tool life

• Fast and easy tool changes

• Stable high-speed machining performance

These benefits make hydraulic chucks ideal for precision machining applications across various industries.

How Hydraulic Tool Holders Work

Hydraulic Expansion Technology

A hydraulic tool holder contains a sealed hydraulic chamber filled with pressurized fluid. When the clamping screw is tightened, hydraulic pressure expands the internal sleeve evenly around the tool shank.

This mechanism provides:

• Uniform clamping force

• Minimal runout

• Excellent rigidity

• Reduced tool vibration

Advantages Over Conventional Tool Holders

Traditional collet systems may create uneven clamping pressure, while hydraulic systems provide 360-degree tool contact for enhanced machining stability.

BT Hydraulic Tool Holders

Features of BT Hydraulic Tool Holders

BT Hydraulic Tool Holders are among the most commonly used holders in CNC machining centers worldwide.

Key features include:

• High precision clamping

• Excellent balancing performance

• Strong vibration absorption

• Compatibility with standard BT spindles

• Easy tool replacement

These holders are suitable for roughing, semi-finishing, and finishing operations.

BT40 Hydraulic Tool Holder

Why Choose a BT40 Hydraulic Tool Holder?

The BT40 Hydraulic Tool Holder is one of the most popular tool holder specifications in precision machining.

Advantages include:

• High concentricity accuracy

• Stable cutting performance

• Improved surface quality

• Reduced spindle vibration

• Enhanced tool lifespan

Applications of BT40 Hydraulic Tool Holder

The BT40 Hydraulic Tool Holder is widely used in:

• Mold manufacturing

• Aerospace components

• Automotive parts

• Medical devices

• Precision engineering

For machining operations requiring consistent accuracy, the BT40 Hydraulic Chuck provides outstanding performance.

BT40 Hydraulic Chuck

High-Precision Clamping Performance

The BT40 Hydraulic Chuck is designed for high-speed machining and precision finishing applications.

Benefits include:

• Excellent runout control

• Strong clamping force

• High-speed spindle compatibility

• Superior tool stability

Manufacturers often choose BT40 hydraulic chucks to improve machining accuracy and reduce tool wear.

BT30 Hydraulic Tool Holders

Compact and Efficient Tool Holding

BT30 Hydraulic Tool Holders are ideal for smaller machining centers and lightweight cutting applications.

Key advantages:

• Compact design

• High rotational accuracy

• Fast tool changes

• Reduced machine load

Applications

BT30 holders are commonly used for:

• Electronics manufacturing

• Small precision components

• Aluminum machining

• High-speed finishing operations

Their lightweight structure makes them ideal for compact CNC equipment.

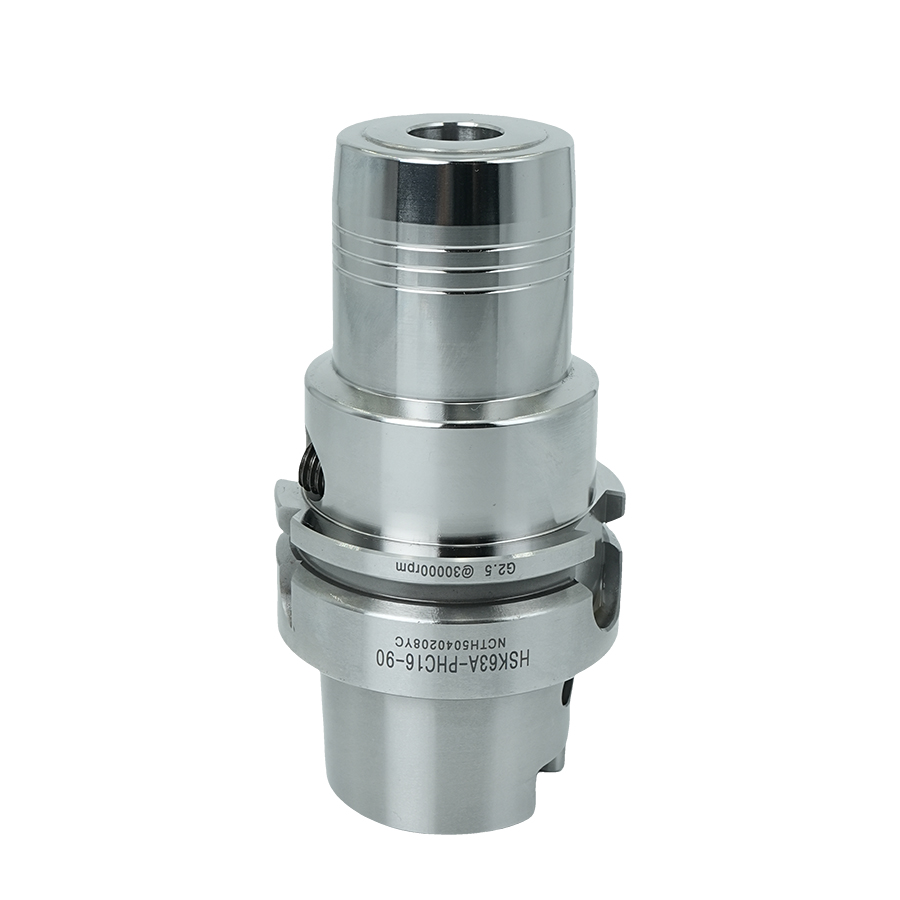

HSK Hydraulic Tool Holder

What Is an HSK Hydraulic Tool Holder?

An HSK Hydraulic Tool Holder combines hydraulic clamping technology with the high-performance HSK spindle interface.

The HSK system offers:

• Dual-contact positioning

• High rigidity

• Excellent repeatability

• High-speed machining capability

Benefits of HSK Hydraulic Tool Holders

• Exceptional machining precision

• Improved dynamic balance

• Faster tool changes

• Reduced vibration

• Longer spindle life

These advantages make HSK Hydraulic Tool Holders a preferred solution for advanced CNC machining environments.

BBT Hydraulic Tool Holders

Enhanced Rigidity with Dual Contact

BBT Hydraulic Tool Holders feature dual-contact technology that engages both the taper and flange surfaces simultaneously.

Advantages include:

• Increased rigidity

• Improved machining stability

• Better cutting performance

• Reduced vibration during heavy cutting

Applications

BBT holders are widely used in:

• Aerospace machining

• Mold production

• Heavy-duty CNC milling

• Precision component manufacturing

For demanding machining operations, BBT Hydraulic Tool Holders provide exceptional stability and accuracy.

Advantages of Hydraulic Tool Holders

Superior Runout Accuracy

Hydraulic expansion technology minimizes runout, improving machining precision and surface finish quality.

Excellent Vibration Damping

Hydraulic chambers absorb cutting vibrations, reducing chatter and enhancing machining stability.

Extended Tool Life

Stable clamping reduces uneven wear on cutting tools, increasing productivity and lowering tooling costs.

Better Surface Finish

Improved tool stability results in smoother surfaces and higher-quality finished parts.

Easy Tool Changes

Hydraulic holders allow quick and convenient tool replacement without complex adjustments.

Applications of Hydraulic Tool Holders

Hydraulic holders are widely used in various industries:

Aerospace Industry

• Aircraft structural components

• Titanium machining

• Precision aluminum parts

Automotive Manufacturing

• Engine components

• Transmission parts

• Mold production

Medical Industry

• Surgical instruments

• Medical implants

• Precision stainless steel parts

Mold & Die Industry

• Injection molds

• Die casting molds

• High-precision cavity machining

General CNC Machining

• Precision milling

• Finishing operations

• High-speed machining

Why Choose Our Hydraulic Tool Holders?

As a professional tool holder manufacturer, we offer:

Advanced Manufacturing Technology

Our hydraulic holders are manufactured using high-precision CNC equipment and strict quality control procedures.

Complete Product Range

We supply:

• Hydraulic Tool Holders

• BT40 Hydraulic Chuck

• BT30 Hydraulic Tool Holders

• HSK Hydraulic Tool Holder

• BT40 Hydraulic Tool Holder

• BBT Hydraulic Tool Holders

• BT Hydraulic Tool Holders

• HSK Hydraulic Tool Holders

Consistent Quality

Every holder undergoes comprehensive testing for:

• Runout accuracy

• Balancing performance

• Clamping reliability

• Dimensional precision

OEM & Custom Solutions

Customized hydraulic tool holders are available to meet specific machining requirements.

FAQ

What are Hydraulic Tool Holders?

Hydraulic Tool Holders use hydraulic pressure to clamp cutting tools with high precision, providing excellent accuracy and vibration damping.

What is the difference between BT40 Hydraulic Tool Holder and BT40 Hydraulic Chuck?

Both terms are often used interchangeably. A BT40 Hydraulic Chuck refers to a hydraulic tool holder with a BT40 spindle interface.

What are the advantages of BT30 Hydraulic Tool Holders?

BT30 Hydraulic Tool Holders offer lightweight design, high precision, and excellent performance for compact machining centers.

Why choose an HSK Hydraulic Tool Holder?

HSK Hydraulic Tool Holders provide superior rigidity, high-speed capability, and exceptional machining accuracy.

What are BBT Hydraulic Tool Holders used for?

BBT Hydraulic Tool Holders are commonly used in heavy-duty and high-precision machining applications where maximum rigidity is required.
