What Are Hydraulic Tool Holders?

Hydraulic Tool Holders are widely used in modern CNC machining for their excellent precision, vibration damping performance, and easy tool installation. Compared with traditional mechanical chucks, Hydraulic Tool Holders use hydraulic pressure to create uniform clamping force, ensuring superior concentricity and stable cutting performance.

They are especially suitable for finishing operations where accuracy and surface quality are critical. Popular systems include BT40 Hydraulic Chuck, BT30 Hydraulic Tool Holders, HSK Hydraulic Tool Holder, and advanced BBT Hydraulic Tool Holders designed for high-speed machining centers.

What Are Hydraulic Tool Holders?

A Hydraulic Tool Holder uses an internal oil chamber that expands when a screw is tightened. This hydraulic pressure evenly clamps the cutting tool shank with 360-degree contact.

This structure provides:

• Extremely low runout

• Strong vibration damping

• Easy tool insertion and removal

• High repeatability

Because of these advantages, BT Hydraulic Tool Holders and HSK Hydraulic Tool Holders are widely used in precision machining industries.

Advantages of Hydraulic Tool Holders

High Precision Clamping

Hydraulic systems provide uniform pressure around the tool, ensuring excellent concentricity and reducing machining errors.

Superior Vibration Damping

Compared to collet chucks and mechanical holders, hydraulic designs absorb cutting vibration effectively, improving surface finish and tool life.

Easy Operation

Tool installation is simple—just insert the tool and tighten the screw. No heating or special equipment is required.

Extended Tool Life

Reduced vibration and stable clamping force help extend cutting tool durability and reduce tool wear.

BT Series Hydraulic Tool Holders

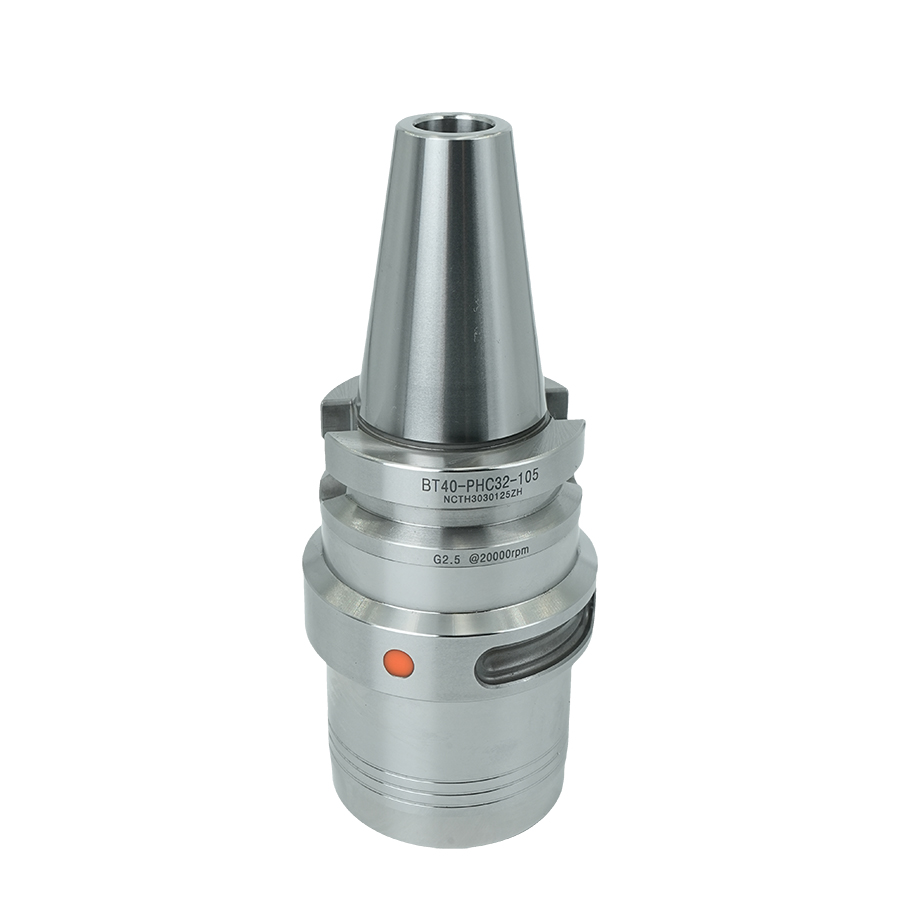

BT40 Hydraulic Chuck

The BT40 Hydraulic Chuck is one of the most commonly used models in CNC machining centers. It offers a perfect balance between rigidity and versatility.

Applications:

• Precision milling

• Finishing operations

• Mold manufacturing

• Automotive components

The BT40 system is widely recognized for stable performance and cost efficiency.

BT30 Hydraulic Tool Holders

BT30 Hydraulic Tool Holders are designed for compact machining centers that require high-speed and high-precision cutting.

Features:

• Lightweight structure

• High-speed capability

• Excellent runout accuracy

• Ideal for small precision parts

BT40 Hydraulic Tool Holder

The BT40 Hydraulic Tool Holder offers strong compatibility and is widely used across general CNC machining applications. It is suitable for both rough finishing and precision finishing operations.

BT Hydraulic Tool Holders

BT Hydraulic Tool Holders cover a wide range of taper sizes such as BT30, BT40, and BT50. They are known for durability, stability, and wide machine compatibility.

HSK Hydraulic Tool Holder Systems

HSK Hydraulic Tool Holder

The HSK Hydraulic Tool Holder combines the high-speed performance of HSK interface with hydraulic damping technology. It is widely used in aerospace and high-precision industries.

Advantages:

• Dual-contact rigidity (spindle + taper)

• Ultra-high precision

• Excellent balance performance

• Suitable for high-speed machining centers

HSK Hydraulic Tool Holders

HSK Hydraulic Tool Holders are preferred in applications requiring micron-level accuracy and stable surface finishing quality.

BBT Hydraulic Tool Holders

BBT Hydraulic Tool Holders are an upgraded version of BT systems with dual-contact design. This improves rigidity and stability, especially in high-speed machining environments.

Key benefits:

• Higher rigidity than standard BT holders

• Improved vibration resistance

• Better performance in heavy cutting and finishing

• Suitable for advanced CNC machining centers

Applications of Hydraulic Tool Holders

Hydraulic tool holders are widely used in industries such as:

• Aerospace components machining

• Automotive manufacturing

• Mold and die production

• Precision electronics parts

• Medical device manufacturing

• High-speed CNC machining centers

Whether you choose BT40 Hydraulic Chuck, BT30 Hydraulic Tool Holders, HSK Hydraulic Tool Holder, or BBT Hydraulic Tool Holders, hydraulic technology provides superior precision, stability, and surface finish quality.

Modern BT Hydraulic Tool Holders and HSK Hydraulic Tool Holders have become essential tools in high-performance CNC machining, helping manufacturers improve efficiency, extend tool life, and achieve consistent machining accuracy.
