What Is an HSK Tool Holder?

Modern CNC machining demands high precision, stability, and efficiency, especially in high-speed applications. The HSK Tool Holder has become one of the most advanced solutions in today’s machining industry due to its superior rigidity and accuracy.

This article explains what an HSK tooling system is, how HSK Tool Holders work, the different HSK tool holder types, and whether ISO or HSK tool holders are better for CNC machining.

What Is an HSK Tool Holder?

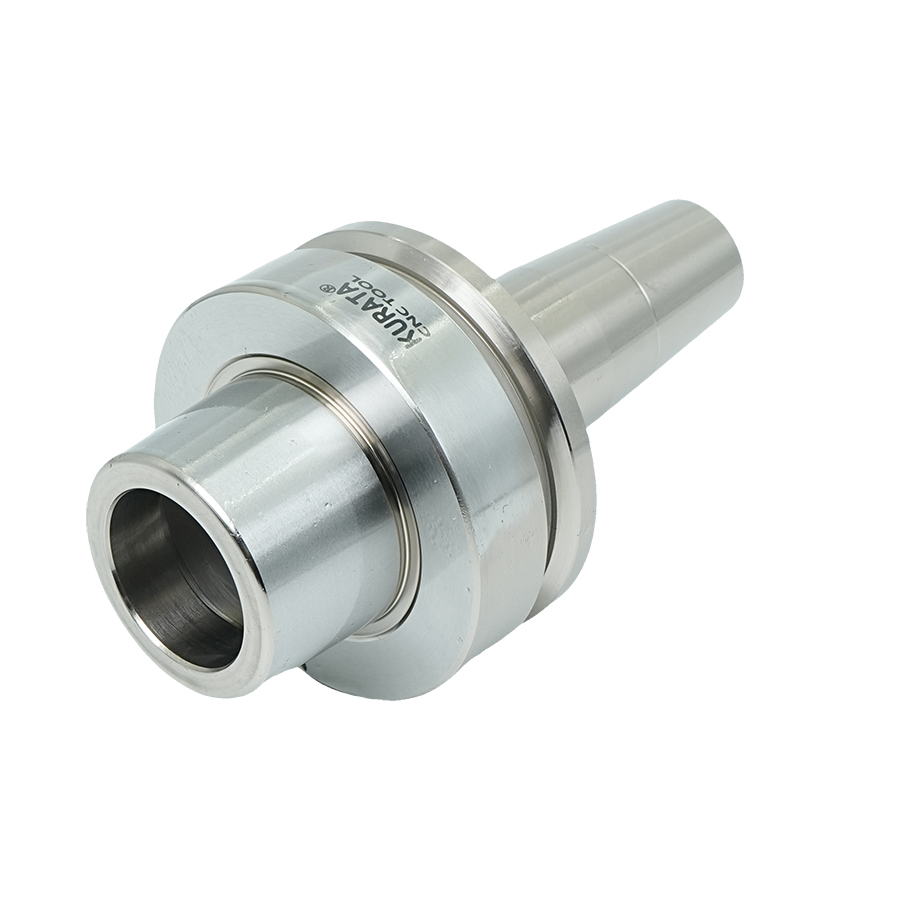

An HSK tool holder (Hohl Shaft Kegel tool holder) is a hollow shank taper tool interface designed for high-speed and high-precision CNC machining centers.

Unlike traditional steep-taper holders, the HSK CNC tool holder uses dual-contact positioning:

• Taper contact

• Face contact between spindle and holder

This dual-contact design provides exceptional rigidity and positioning accuracy.

The HSK tooling system is widely used in:

• CNC machining centers

• High-speed milling machines

• Aerospace machining

• Automotive manufacturing

• Precision mold manufacturing

How Does an HSK Tool Holder Work?

Understanding how an HSK tool holder works helps explain why it performs better at high speeds.

Step 1: Hollow Shank Design

The HSK holder has a hollow structure that slightly expands when clamped inside the spindle.

Step 2: Internal Clamping Mechanism

A drawbar mechanism expands inside the holder, pulling it tightly into the spindle.

Step 3: Dual Contact System

The holder simultaneously contacts:

• The taper surface

• The spindle face

This creates excellent rigidity, minimal runout, and improved vibration damping.

Step 4: High-Speed Stability

As spindle speed increases, centrifugal force improves clamping stability instead of weakening it.

This makes high speed HSK holders ideal for modern CNC applications.

HSK Tool Holder Types

There are several HSK tool holder types, each designed for different machining tasks.

HSK-A Tool Holders

Tool holders HSK-A are the most common standard for general machining.

Applications:

• Milling

• Drilling

• General CNC operations

Common sizes include:

• HSK 40 tool holder

• HSK 50 tool holder

• HSK 80 tool holder

• HSK 100 tool holders

HSK-E Tool Holder

The tool holder HSK-E series is designed for ultra-high-speed machining.

Features:

• Lightweight design

• High balance quality

• Ideal for small tools and high RPM machining

HSK-F Tool Holders

Tool holders HSK-F are widely used in woodworking CNC machines.

Advantages:

• Fast tool change

• Stable cutting performance

Other Popular HSK Tooling Options

HSK Collet Tool Holder

Uses Collets for flexible tool clamping and high precision.

HSK Hydraulic Tool Holder

Provides excellent vibration damping and surface finish.

HSK Heat Shrink Holders

HSK Shrink Fit Tool Holders use thermal expansion for ultra-precise tool gripping.

Custom HSK Tool Holders

Manufactured by HSK tooling system manufacturers for specialized machining requirements.

HSK Tool Holder Sizes

Selecting the correct HSK tool holder sizes is critical for performance.

Common sizes include:

• HSK 32 tool holder

• HSK 40 tool holder

• HSK 50 tool holder

• HSK 63 tool holder

• HSK 80 tool holder

• HSK 100 tool holders

Larger sizes provide higher torque capacity, while smaller holders support higher spindle speeds.

Which Is Better: ISO or HSK Tool Holder?

A common question in CNC machining is: Which is better, ISO or HSK tool holder?

ISO Tool Holder Advantages

• Lower cost

• Compatible with older machines

• Suitable for heavy low-speed cutting

HSK Tool Holder Advantages

• Higher precision

• Better balance at high speeds

• Improved surface finish

• Ideal for modern CNC machining

For high-speed and precision manufacturing, HSK tool holders are generally considered the better choice.

Benefits of High Quality HSK Tooling System

A high quality HSK tooling system offers multiple advantages:

• Excellent machining accuracy

• Reduced vibration

• Higher spindle speeds

• Longer tool life

• Faster tool changes

• Improved productivity

This is why many manufacturers are transitioning from traditional holders to precision HSK tooling solutions.

OEM HSK Tooling System and Manufacturers

Many companies offer OEM HSK tooling system services, allowing customers to customize:

• Tool holder geometry

• Balance grade

• Surface coating

• Tool clamping solutions

Professional HSK tooling system manufacturers supply:

• CNC HSK tool holders

• HSK hydraulic holders

• HSK collet holders

• Custom HSK holders

• Complete tooling systems

When evaluating suppliers, buyers often compare HSK tooling system price, quality certifications, and machining performance.

Applications of HSK Toolholders

HSK toolholders are widely used in:

• Automotive parts machining

• Aerospace components

• Mold and die manufacturing

• Precision medical components

• High-speed aluminum machining

• 5-axis CNC machining centers

Their superior rigidity and accuracy make them essential for advanced manufacturing environments.

The HSK tool holder represents a major advancement in CNC tooling technology. With its dual-contact design, excellent balance, and high-speed performance, the HSK tooling system delivers superior precision compared to traditional interfaces.

Whether using HSK shrink fit holders, HSK hydraulic tools holder, or HSK collet tool holders, manufacturers benefit from improved machining quality and efficiency. As CNC machining continues evolving toward higher speeds and tighter tolerances, HSK tool holders remain the preferred solution for modern precision manufacturing.
