How Does a HSK Tool Holder Work?

High-speed machining requires extreme precision, rigidity, and stability between the cutting tool and the machine spindle. This is why the HSK tool holder has become the preferred solution in modern CNC machining centers.

In this article, we explain how does a HSK tool holder work, what makes it different from traditional holders, and how various types such as HSK Hydraulic Tool Holder, HSK Shrink Fit Tool Holders, and different HSK sizes improve machining performance.

What Is HSK Tool Holder?

Before understanding how it works, it is important to know what is HSK tool holder.

HSK stands for Hohl Shaft Kegel, a German term meaning hollow taper shank. Unlike traditional tool holders, an HSK tool holder features a hollow shank design that enables highly precise clamping inside the machine spindle.

HSK systems are widely used in:

• High-speed CNC machining

• 5-axis machining centers

• Aerospace manufacturing

• Automotive precision parts

• Mold and die machining

Today, HSK tool holders are considered one of the most advanced tooling interface standards.

How Does a HSK Tool Holder Work?

The working principle of an HSK tool holder is based on internal clamping and dual-contact positioning.

1. Tool Holder Insertion

When the HSK tool holder is inserted into the spindle:

• The taper section enters the spindle bore.

• The hollow structure allows slight elastic deformation.

• Proper alignment begins immediately.

2. Internal Clamping Mechanism

Inside the spindle is an expanding clamping unit.

The mechanism:

• Expands outward

• Grips the internal groove of the holder

• Pulls the holder firmly into position

This creates a strong and secure connection.

3. Dual Contact System (Key Technology)

The biggest advantage of HSK tool holders is the dual-contact interface:

Taper contact for accurate centering
Face contact for rigidity and stability

This dual support dramatically improves machining accuracy compared to traditional holders.

4. Self-Tightening at High Speed

During high-speed rotation:

• Centrifugal force expands the spindle slightly.

• The hollow shank adapts elastically.

• Contact pressure increases.

Instead of loosening, the HSK tool holder becomes tighter, maintaining excellent stability even at very high RPM.

Types of HSK Tool Holders

Different machining requirements require different holder technologies.

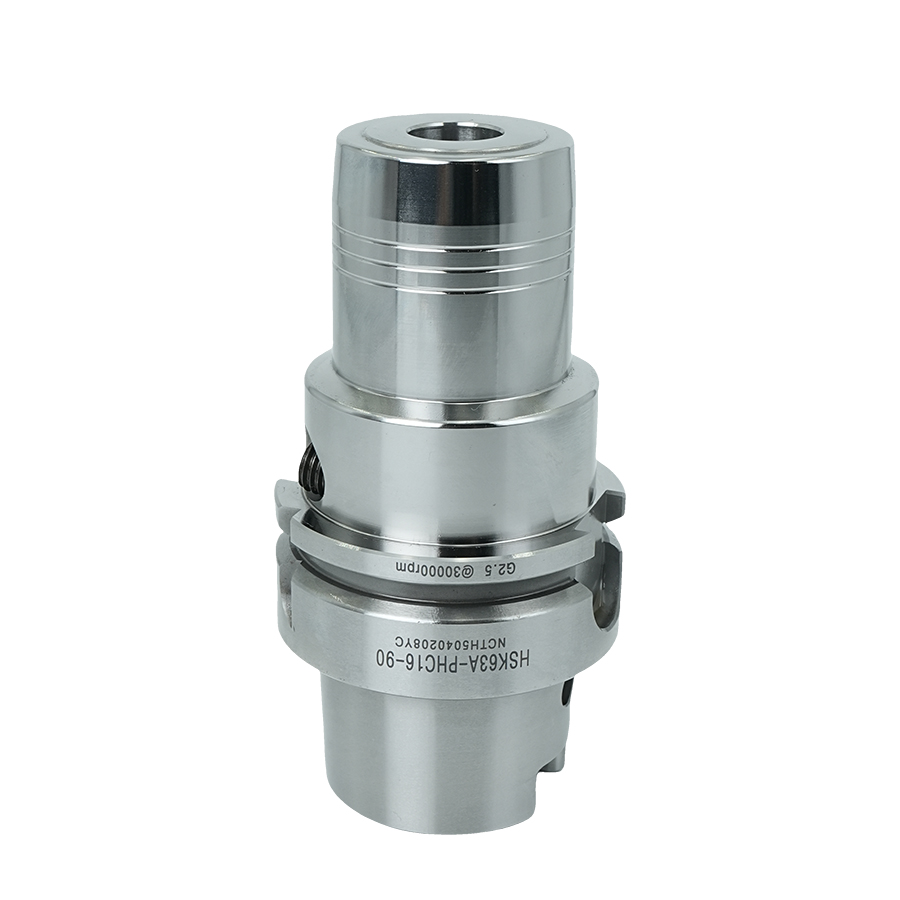

HSK Hydraulic Tool Holder

The HSK Hydraulic Tool Holder uses hydraulic pressure to clamp cutting tools.

Key advantages:

• High vibration damping

• Excellent surface finish

• Easy tool change

• High concentricity accuracy

Many manufacturers prefer HSK Hydraulic Tool Holders for finishing operations and precision machining.

Also commonly searched as:

• HSK hydraulic tools holder

HSK Shrink Fit Tool Holders

HSK Shrink Fit Tool Holders clamp tools through thermal expansion.

Working principle:

1. Heat expands the holder bore.

2. Insert cutting tool.

3. Cooling creates extremely strong clamping force.

Benefits:

• Maximum rigidity

• High-speed capability

• Excellent balance performance

Ideal for aerospace and high-speed milling applications.

Collet Holders

Collet holders remain a versatile solution within HSK systems.

Advantages:

• Flexible tool diameter range

• Easy replacement

• Cost-effective operation

They are commonly used for general machining tasks.

Common HSK Tool Holder Sizes

HSK holders are available in multiple interface sizes depending on machine spindle specifications.

Popular models include:

• HSK 25 Tool Holder

• HSK 32 Tool Holder

• HSK E32 Tool Holder

• HSK 63 Tool Holder

• HSK 80 Tool Holder

Each size determines:

• Torque capacity

• Rigidity level

• Suitable spindle power range

For example, the HSK 63 tool holder is widely used in general high-speed machining, while the HSK 80 tool holder supports heavy-duty cutting applications.

Why Choose the Best HSK Tool Holders?

Selecting the best HSK tool holders directly affects machining performance.

Key Benefits

• Higher machining accuracy

• Reduced vibration

• Better surface finish

• Faster spindle speeds

• Improved tool life

• Stable high-speed operation

Compared with traditional BT or CAT holders, HSK interfaces provide superior rigidity and repeatability.

HSK Tool Holder vs Traditional Tool Holders

Applications of HSK Tool Holders

Modern industries rely heavily on HSK tool holders:

• Aerospace components

• Automotive engine parts

• Precision molds

• Medical devices

• High-speed aluminum machining

• 5-axis CNC manufacturing

Their performance makes them essential for advanced manufacturing environments.

How to Choose the Right HSK Tool Holder

When selecting an HSK solution, consider:

• Required spindle interface size

• Machining speed and load

• Tool clamping method (hydraulic, shrink fit, collet)

• Balance grade for high-speed machining

• Manufacturer quality and precision standards

Working with experienced suppliers ensures optimal machining performance.

Understanding how does a HSK tool holder work helps manufacturers improve machining precision, productivity, and tool stability.

Through its internal clamping mechanism and dual-face contact design, the HSK tool holder delivers outstanding performance for modern high-speed machining. Whether using HSK Hydraulic Tool Holders, HSK Shrink Fit Tool Holders, or different sizes like HSK 63 tool holder and HSK 80 tool holder, HSK technology remains a leading solution in advanced CNC manufacturing.

As machining speeds and accuracy demands continue to increase, choosing high-quality HSK tool holders becomes essential for achieving reliable and efficient production results.
