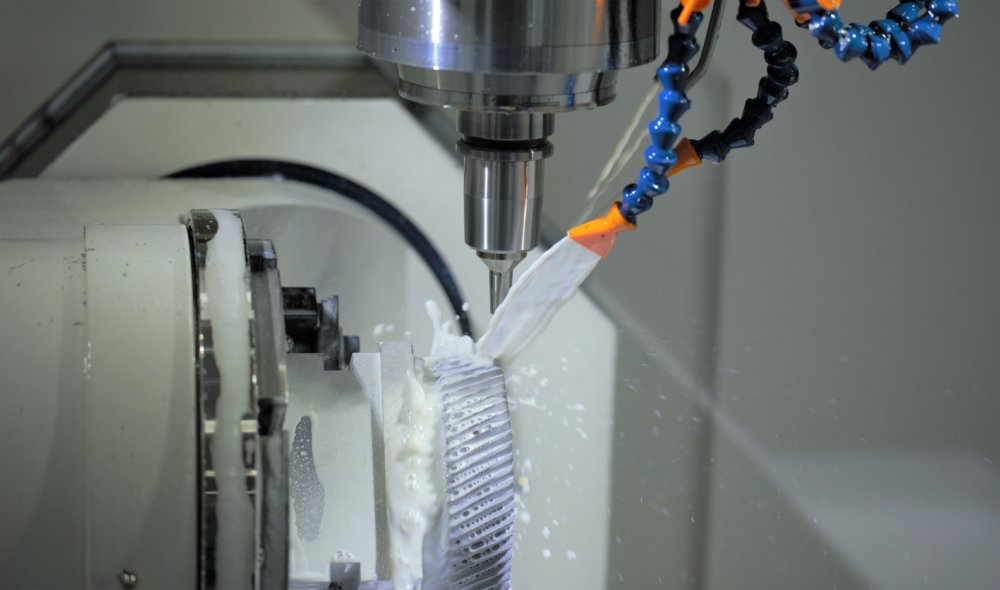

What Are Shrink Fit Tool Holders?

In modern CNC machining, the tool holder in CNC machine systems plays a critical role in determining machining precision, stability, and productivity. High-performance tool holding solutions such as Shrink Fit Tool Holders, HSK tool holders, hydraulic chucks, and ER Collet Holders are widely used in industries including automotive, aerospace, mold manufacturing, and precision engineering.

This article will introduce the working principles, advantages, and applications of different CNC tool holders, including HSK Shrink Fit Tool Holders, BT Shrink Fit Tool Holders, BBT Shrink-Fit Tool Holders, Shrink-Fit Extensions, SK Collets, and various collet chuck systems.

What Are Shrink Fit Tool Holders?

Shrink Fit Tool Holders are high-precision CNC tool holders that use thermal expansion to clamp cutting tools. The holder is heated using a shrink-fit machine, causing the bore to expand slightly. A cutting tool is inserted, and as the holder cools, it contracts tightly around the tool shank.

This method provides a highly concentric and vibration-resistant connection, making shrink-fit holders ideal for high-speed and high-precision machining.

Key Advantages

• Extremely high clamping force

• Excellent runout accuracy

• Improved surface finish

• High-speed machining capability

• Reduced vibration during cutting

Compared with traditional ER collet holders or hydraulic chucks, shrink fit systems provide superior rigidity and balance for demanding machining operations.

HSK Shrink Fit Tool Holders

HSK Shrink Fit Tool Holders combine the precision of shrink-fit technology with the high-performance HSK tool holder interface.

The HSK tool holder system is widely used in high-speed CNC machining centers because it offers dual-contact between the spindle face and taper, ensuring superior rigidity and accuracy.

Features of HSK Shrink Fit Tool Holders

• High-speed stability

• Excellent axial positioning accuracy

• Strong tool clamping force

• Ideal for high-speed machining centers

These holders are commonly used in aerospace component manufacturing, die & mold machining, and precision parts production.

BT Shrink Fit Tool Holders

BT Shrink Fit Tool Holders are designed for CNC machines that use the BT40 tool holder interface and other BT taper standards.

The BT system is widely used in machining centers due to its reliable clamping and compatibility with many CNC machines.

Benefits of BT Shrink Fit Tool Holders

• High rigidity for heavy cutting

• Excellent concentricity

• Improved tool life

• Stable performance in high-speed operations

Because of their balance performance, BT shrink-fit holders are ideal for high-speed milling, drilling, and finishing operations.

BBT Shrink-Fit Tool Holders

BBT Shrink-Fit Tool Holders (Big Plus BT) provide dual-contact technology similar to HSK systems. They contact both the spindle taper and face, significantly improving rigidity.

Advantages of BBT Shrink-Fit Tool Holders

• Higher machining accuracy

• Reduced vibration

• Increased spindle rigidity

• Improved tool life and surface finish

These holders are especially suitable for high-speed machining centers and precision milling applications.

Shrink-Fit Extensions

Shrink-Fit Extensions are designed to extend the reach of cutting tools when machining deep cavities or difficult-to-access areas.

Key Features

• High rigidity even at extended lengths

• Excellent runout accuracy

• Perfect compatibility with shrink-fit systems

Shrink-fit extensions are widely used in mold manufacturing, deep cavity machining, and complex component production.

SK Collets and SK Collet Chucks

SK collets are commonly used in European-style tool holder systems. They provide precise tool clamping and are widely used with SK collet chuck holders.

Advantages of SK Collets

• Strong clamping force

• High precision tool positioning

• Suitable for a wide range of cutting tools

The SK collet chuck design ensures stable clamping and flexibility for different tool diameters.

ER Collet Holder Systems

The ER collet holder is one of the most commonly used tool holding systems in CNC machining. It uses ER collets to clamp cutting tools of different diameters.

Features of ER Collet Holders

• Wide clamping range

• Easy tool changes

• Good precision and versatility

• Cost-effective solution

Although shrink-fit holders offer higher precision, ER collet systems remain popular for general machining operations.

Pull Back Collet Chuck

The pull back collet chuck is designed to improve tool positioning accuracy by pulling the tool shank backward during clamping.

Benefits

• Higher positioning accuracy

• Improved clamping stability

• Reduced tool runout

These chucks are often used in high-precision turning and milling operations.

Hydraulic Chucks

Hydraulic chucks are another high-precision tool holding solution that uses hydraulic pressure to clamp the tool.

Advantages of Hydraulic Chuck Systems

• Excellent vibration damping

• High precision clamping

• Easy tool installation

• Long tool life

Compared with shrink-fit holders, hydraulic chucks provide faster tool changes and are widely used for finishing operations.

Choosing the Right Tool Holder in CNC Machine Applications

Selecting the correct tool holder in CNC machine operations depends on several factors:

1. Machining Speed

High-speed machining often requires HSK tool holders or shrink-fit systems.

2. Precision Requirements

For ultra-precision work, shrink fit tool holders or hydraulic chucks are recommended.

3. Flexibility

If multiple tool diameters are required, ER collet holders provide better flexibility.

4. Machine Interface

The machine spindle determines whether you should use:

• BT40 tool holder

• HSK tool holder

• SK collet chuck

Applications of Advanced CNC Tool Holders

Modern tool holders are widely used across industries, including:

• Aerospace manufacturing

• Automotive parts machining

• Mold and die manufacturing

• Medical device production

• Precision electronics components

Using the right tool holder improves machining accuracy, productivity, and tool life.

High-performance tool holding solutions such as Shrink Fit Tool Holders, HSK Shrink Fit Tool Holders, BT Shrink Fit Tool Holders, BBT Shrink-Fit Tool Holders, and Shrink-Fit Extensions have become essential in modern CNC machining.

Along with other systems like ER collet holders, SK collets, pull back collet chucks, and hydraulic chucks, manufacturers can choose the most suitable tool holder in CNC machine applications based on precision, speed, and machining requirements.

By selecting the right tool holder system—whether it is an HSK tool holder, BT40 tool holder, or hydraulic chuck—machining efficiency, accuracy, and production quality can be significantly improved.
