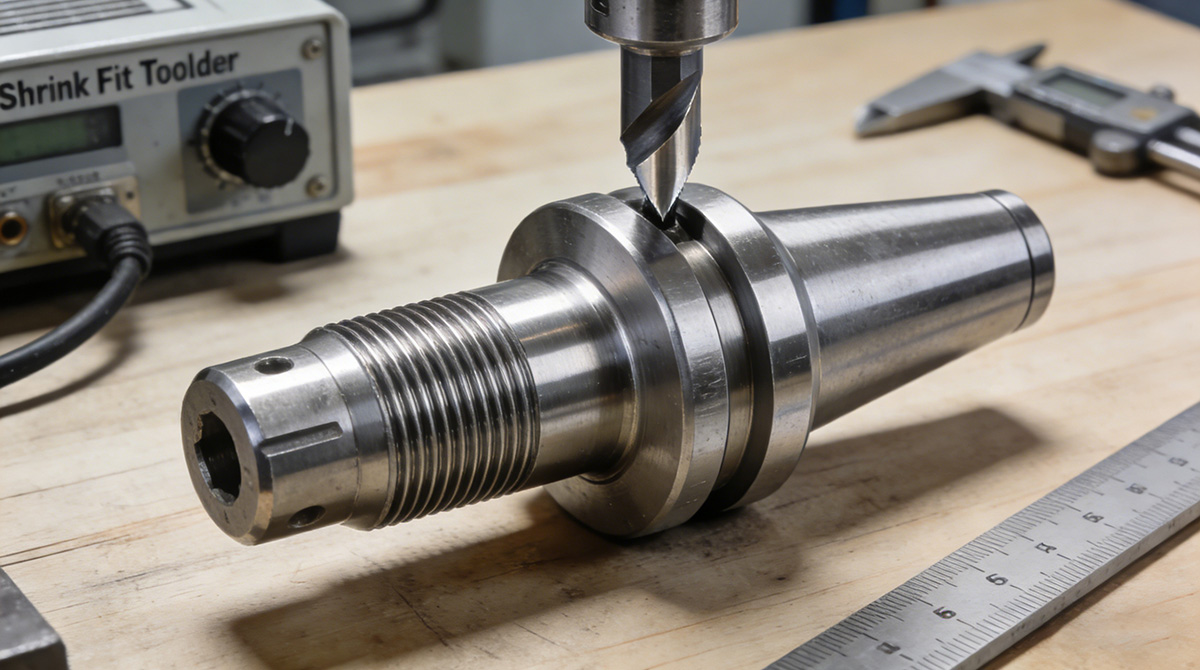

How Hot Does a Shrink Fit Tool Holder Get

A Shrink Fit tool holder is a crucial component in modern CNC machining, providing exceptional precision and stability for cutting tools. Unlike traditional tool holders that rely on Collets or clamps, a heat shrink tool holder uses the principle of thermal expansion and contraction to hold a tool securely. Understanding how hot a shrink fit tool holder gets is essential for machinists to ensure proper tool installation and safe operation.

What is a Shrink Fit Tool Holder?

A shrink fit tool holder works on a simple but highly effective principle. The tool holder is heated, causing its inner bore to expand. The cutting tool, slightly larger than the bore at room temperature, is then inserted. As the holder cools, the bore contracts around the tool, creating a tight, vibration-free grip. This makes high precision tool holders ideal for applications requiring minimal runout and maximum torque transmission.

Compared to conventional holders, a CNC tool holder with shrink fit technology offers several advantages:

• Extremely accurate tool positioning

• Reduced vibration during high-speed machining

• Long-lasting tool retention without slippage

Typical Heating Temperature

The recommended tool holder heating temperature for Shrink Fit Holders generally falls between 220°C and 260°C (428°F–500°F). The exact temperature depends on several factors:

1. Tool holder material: Steel or alloy steel holders may require slightly different heating levels.

2. Holder diameter and wall thickness: Larger or thicker holders need higher temperatures for uniform expansion.

3. Tool size and interference fit: Tools with tighter tolerances may need a slightly higher temperature to allow smooth insertion.

It is important to heat the tool holder to the correct range. If the temperature is too low, the tool may not fit properly, or the grip may be insufficient. If the temperature is too high, the holder material may be damaged, affecting longevity and performance.

How to Use a Heat Shrink Tool Holder

Proper use of a heat shrink tool holder involves the following steps:

1. Preparation: Clean both the holder and the cutting tool to remove any oil, debris, or dirt. This ensures a clean, precise fit.

2. Heating: Use a specialized shrink-fit heating device to heat the tool holder to the recommended temperature range (220–260°C). Ensure the holder is evenly heated.

3. Tool Insertion: Using heat-resistant gloves, quickly insert the cutting tool into the heated holder. Speed is important, as the holder begins to cool immediately after removal from the heater.

4. Cooling: Allow the tool holder to cool naturally. As it cools, the bore contracts and securely grips the tool.

5. Inspection: Check that the tool is firmly held. It should not rotate or wobble. Only after the holder is fully cooled should machining operations begin.

Benefits of Shrink Fit Tool Holders

Using heat shrink tool holders offers several advantages for precision machining:

• High precision and repeatability: Minimal runout ensures consistent results.

• Maximum torque transmission: Reduced tool slippage, even in high-speed operations.

• Reduced vibration: Enhances surface finish and tool life.

• Longer tool life: Uniform gripping pressure reduces wear and prevents damage.

These features make shrink fit tool holders a preferred choice for industries requiring high precision machining, such as aerospace, automotive, mold-making, and medical equipment manufacturing.

Safety Considerations

While shrink fit technology is highly effective, safety precautions are essential:

• Always wear heat-resistant gloves when handling a hot tool holder.

• Avoid overheating the holder; excessive temperature can damage its material.

• Ensure the tool is fully inserted and the holder is completely cooled before starting CNC operations.

• Do not repeatedly heat and cool a tool holder excessively, as it may reduce the holder's lifespan.

Knowing how hot a shrink fit tool holder gets is crucial for achieving optimal performance in CNC machining. By heating the holder to the proper tool holder heating temperature of 220–260°C and following proper installation procedures, machinists can benefit from high-precision, vibration-free cutting with excellent tool retention.

A well-maintained shrink fit tool holder not only enhances machining accuracy but also extends the life of your cutting tools, making it an essential component in any professional CNC setup.
