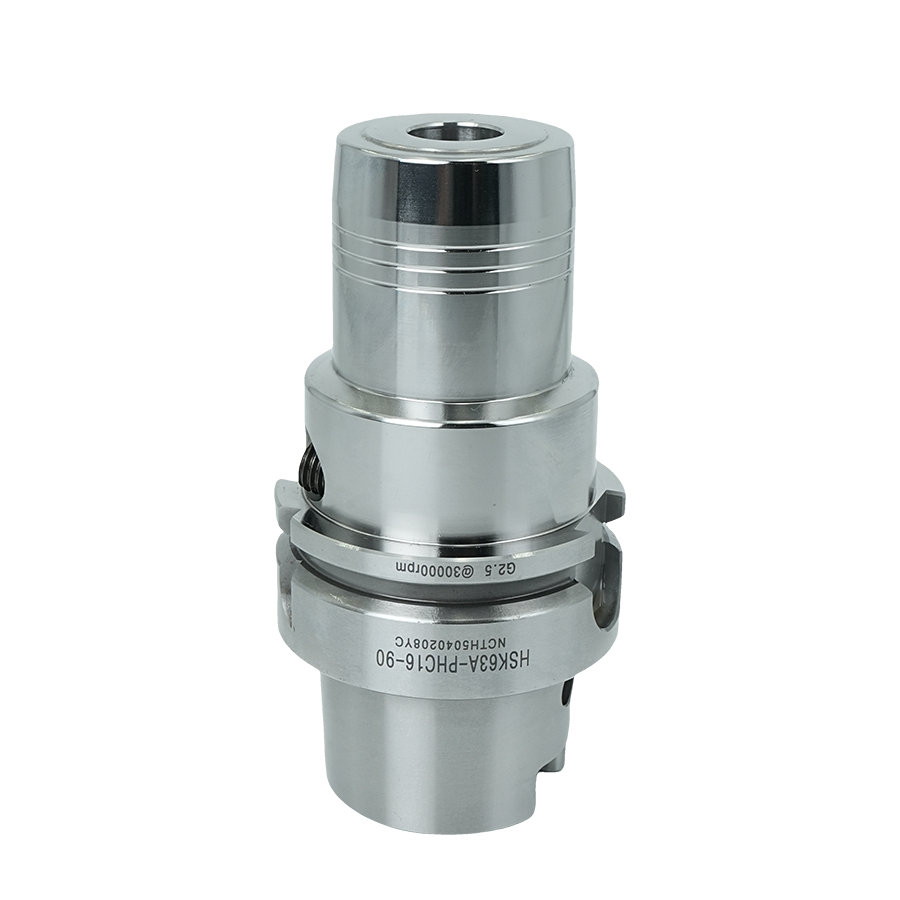

For precision CNC machining, selecting the right tool holder is critical to achieving high accuracy, repeatability, and efficiency. Among various tooling options, the HSK Tool Holder has emerged as a popular solution in modern CNC machining applications. Designed for high-speed, high-precision operations, the HSK system improves tool stability and reduces runout, making it ideal for industries like aerospace, automotive, and mold manufacturing. In this article, we will explain what is HSK tool holder, its working principle, types, advantages, applications, and answer common questions related to its use.
The term HSK stands for Hohl-Schaft-Kegel, which is German for hollow shank taper. Unlike traditional tool holders such as BT or SK, the HSK CNC tool holder features a hollow, lightweight design that allows for higher rigidity and improved spindle-tool connection at high speeds.
Key characteristics of an HSK spindle tool holder include:
Hollow taper design that reduces mass and centrifugal deformation.
Dual-contact interface: The taper and face of the tool holder both engage the spindle for improved stability.
High-speed capability: Optimized for CNC operations exceeding 8000 RPM in many cases.
The HSK collet holder and HSK shrink fit holder variants further enhance clamping precision and rigidity, providing solutions for a wide range of CNC milling and drilling applications.
The HSK tool holder operates on the principle of dual-contact clamping, which ensures both radial and axial stability during machining. Unlike traditional tool holders that rely primarily on the taper fit for clamping, HSK integrates taper contact and face contact simultaneously.
The hollow shank of the HSK holder fits precisely into the spindle’s matching taper. This contact provides radial alignment, ensuring the tool remains centered and minimizing runout during high-speed rotation.
The front end of the HSK tool holder is machined to create a face that presses against the spindle’s mating surface. This axial contact distributes cutting forces evenly, reducing deflection and improving tool rigidity.
Due to its hollow design, the HSK steel tool holder experiences less centrifugal expansion at high rotational speeds. As the tool rotates, the hollow shank contracts slightly toward the spindle, enhancing grip and maintaining machining precision.
HSK collet holder: Uses ER-style Collets to grip cutting tools securely, ideal for milling or drilling.
HSK shrink fit holder: Utilizes thermal expansion to achieve an ultra-precise fit between the tool and holder.
Both types maintain the dual-contact principle while offering specialized advantages depending on the application.
The HSK CNC tool holder has several advantages over conventional tool holders like BT or SK:
The dual-contact design minimizes runout, improves repeatability, and allows for superior surface finish in CNC machining.
The combination of taper and face contact distributes forces across the spindle and tool interface, reducing deflection during heavy cuts.
HSK holders are engineered to withstand the stresses of high-speed rotation, making CNC milling HSK tool holder an optimal choice for modern high-speed machining centers.
HSK holders maintain secure tool clamping even under high torque, ensuring safety and reducing vibration, which is particularly critical in aerospace and mold manufacturing.
The hollow steel construction reduces overall mass, decreasing spindle load and improving machine efficiency.
HSK tool holders are available in various types depending on the connection interface and application needs.
Designed for high-speed machining applications.
Common in precision milling, drilling, and finishing operations.
Often used with HSK collet holders or shrink fit holders.
Offers higher rigidity for heavy-duty cutting.
Suitable for large spindle machines and high-torque applications.
Balances high-speed capability and rigidity.
Often used in CNC machining HSK holders for aerospace and automotive components.
Specialized series for turning and milling centers.
HSK milling tool holder and CNC HSK tool holder variants often fall under these categories.
The CNC HSK tool holder is widely used in high-speed and precision milling operations. Its stability and minimal runout allow for tight tolerances and superior surface finish.
Mold manufacturing requires extreme precision and rigidity. HSK tool holders, including HSK collet holder and shrink fit holder, provide the stability necessary for accurate machining of complex mold cavities.
The aerospace sector demands both high precision and reliability. HSK holders maintain tool accuracy at high speeds and reduce the risk of vibration or deflection during cutting of aluminum, titanium, or composite materials.
HSK holders are employed in CNC machining of automotive parts, including engine components, gear assemblies, and structural parts. The high clamping force ensures safety and consistency during high-speed operations.
In general metalworking, HSK spindle tool holder and HSK steel tool holder variants improve efficiency, precision, and repeatability for a wide range of materials and cutting conditions.
Q1: What is HSK tool holder used for?
A1: HSK tool holders are used in CNC milling, drilling, and precision machining applications where high speed, accuracy, and stability are required.
Q2: How does HSK CNC tool holder differ from BT or SK tool holders?
A2: HSK holders feature dual-contact (taper + face) and a hollow shank design, providing higher rigidity, better precision, and superior performance at high rotational speeds compared to BT/SK holders.
Q3: What types of HSK tool holders are available?
A3: Common types include HSK-A, HSK-F, HSK-E, HSK-T, HSK-C. Each type is optimized for specific applications like high-speed milling, heavy cutting, or precision finishing.
Q4: Can HSK tool holders be used for high-speed CNC milling?
A4: Yes. The hollow shank reduces centrifugal deformation, and dual-contact design maintains precision even at high RPMs.
Q5: What is the difference between HSK collet holder and HSK shrink fit holder?
A5: The collet holder uses ER Collets to clamp tools mechanically, suitable for flexible tool diameters. Shrink fit holders use thermal expansion for ultra-precise and rigid clamping, ideal for high-speed or high-precision operations.
The HSK tool holder is a revolutionary solution for modern CNC machining, offering superior rigidity, precision, and high-speed capability. From aerospace to automotive, mold-making, and general CNC milling, HSK CNC tool holders and variants like HSK collet holder or HSK shrink fit holder provide the stability, accuracy, and reliability that modern machining requires.
Investing in HSK steel tool holders or CNC HSK tool holders ensures consistent performance, reduced tool vibration, and improved surface finish across high-speed and high-precision applications. For manufacturers seeking efficiency, precision, and versatility, the HSK system is a preferred choice in contemporary CNC machining operations.
