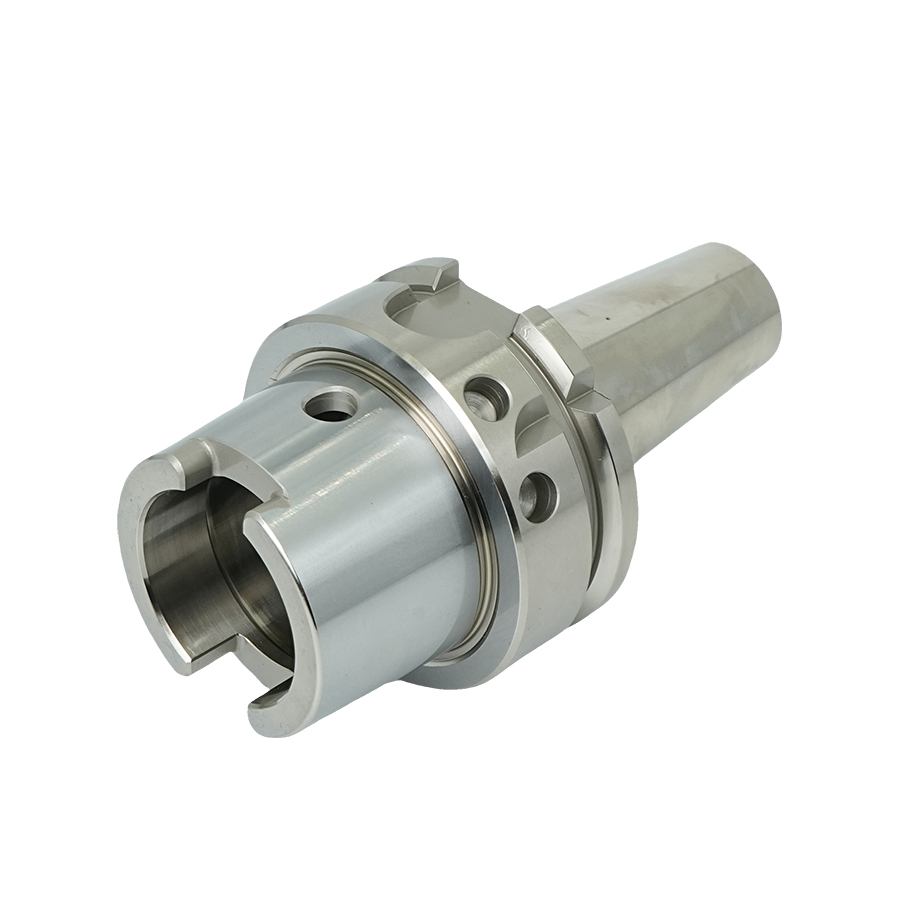

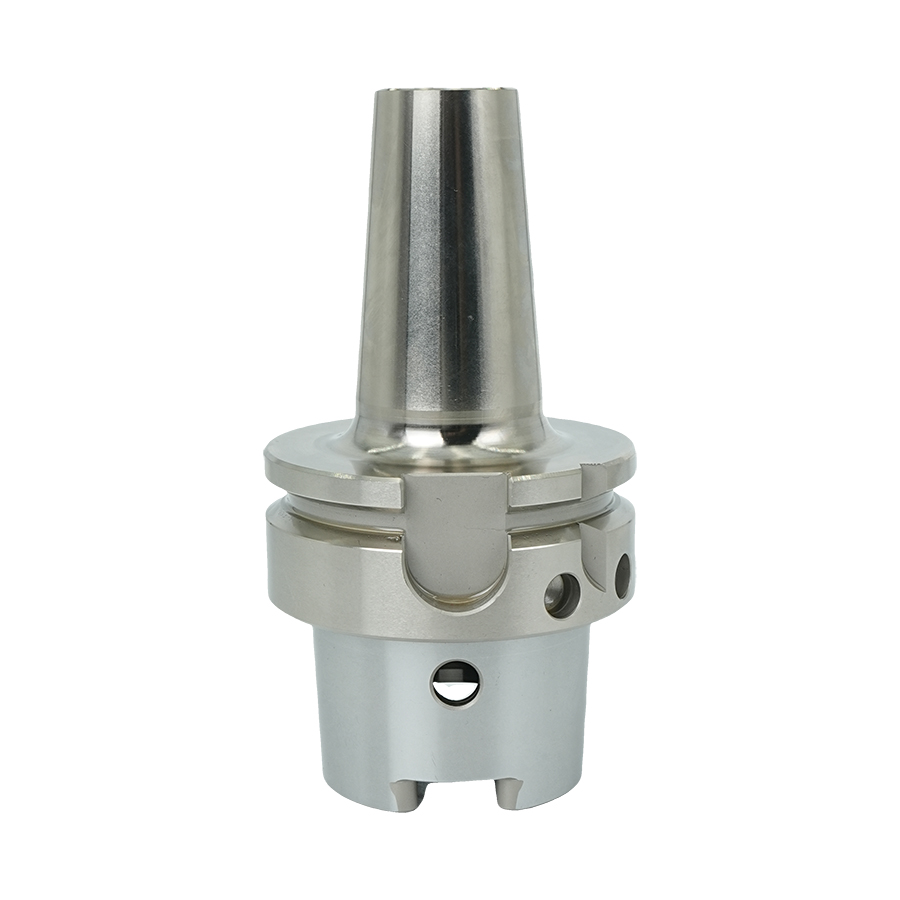

HSK Tool Holder

The HSK Tool Holder is a high-performance clamping system designed for modern CNC machining centers. Unlike traditional tapers, the HSK Holder features a short taper and dual-contact design, providing exceptional rigidity and accuracy for high-speed and high-precision applications. It is the ideal solution for industries requiring consistent accuracy, such as aerospace, automotive, mold making, and precision engineering.

We offer a complete range of HSK tooling options, including Shrink Fit Holders, Heat Shrink Tool Holder, and Shrink Fit Tool Holders for advanced machining requirements. Our Shrink Fit Tooling System, combined with Shrink Fit Machines, ensures a reliable Shrink Fit Process that delivers maximum clamping force and superior concentricity. Additionally, Shrink Fit Chuck, Heat Shrink Holder, and Shrink Tool Holder solutions are available for specialized applications.

Core Advantages

• Unmatched Accuracy: Achieves runout accuracy within 3 μm for superior surface finish and extended tool life.

• High Clamping Force: Shrink Fit Holders provide 360° contact for uniform gripping and vibration reduction.

• Superior Material & Heat Treatment: Made from high-grade alloy steel, hardened for long life and durability.

• Balanced for High-Speed Machining: Suitable for spindles up to 40,000 RPM in high-performance CNC machines.

• Thermal Clamping Technology: Shrink Fit Tool Holders and Heat Shrink Holders ensure excellent concentricity without moving parts.

Typical Applications

• CNC Machining Centers – High-speed milling, drilling, and finishing.

• CNC Turning Tool Holder Solutions – For demanding precision turning operations.

• Mold & Die Industry – Deep cavity machining and fine finishing.

• Aerospace & Automotive – High-tolerance parts and complex geometries.

• General Precision Engineering – Where tool stability and accuracy are critical.

Key Selling Points

• Full range of HSK Tool Holders and customized solutions.

• Advanced Shrink Fit Process for high-speed and heavy-duty cutting.

• Compatible with all Shrink Fit Tooling Systems and Shrink Fit Machines.

• Options include Shrink Fit Chuck, Shrink Holder, and Shrink Tool Holder.

• Designed for both high-speed finishing and heavy-duty roughing.

Technical Specifications (HSK Tool Holder)

Custom designs, lengths, and cooling options available upon request.

Applications by Industry

• Aerospace & Aviation Manufacturing

• Automotive Components

• Mold & Die Production

• Medical Device Manufacturing

• High-Precision CNC Machining

Comparison: HSK vs Other Tool Holders

• HSK vs BT Holders: HSK offers dual-contact interface for greater rigidity, making it superior for high-speed machining compared to BT holders.

• HSK Shrink Fit vs Collet Chuck: Shrink fit ensures better concentricity and higher cutting stability than collets.

• Shrink Fit vs Hydraulic Chuck: Shrink fit provides higher precision for continuous high-speed operations, while hydraulic chucks are more flexible for frequent tool changes.

FAQ

Q1: Why choose an HSK Tool Holder?
Because of its dual-contact design, high rigidity, and suitability for high-speed machining, HSK is ideal for precision industries.

Q2: What is the benefit of the Shrink Fit Process?
The Shrink Fit Process provides 360° clamping contact, eliminating backlash and ensuring maximum accuracy at high RPMs.

Q3: Do you supply Shrink Fit Machines?
Yes, we provide complete Shrink Fit Tooling Systems, including Shrink Fit Machines for thermal clamping.

Q4: Can HSK Tool Holders work for CNC turning operations?
Yes, we offer CNC Turning Tool Holder solutions in the HSK range for precision turning applications.
