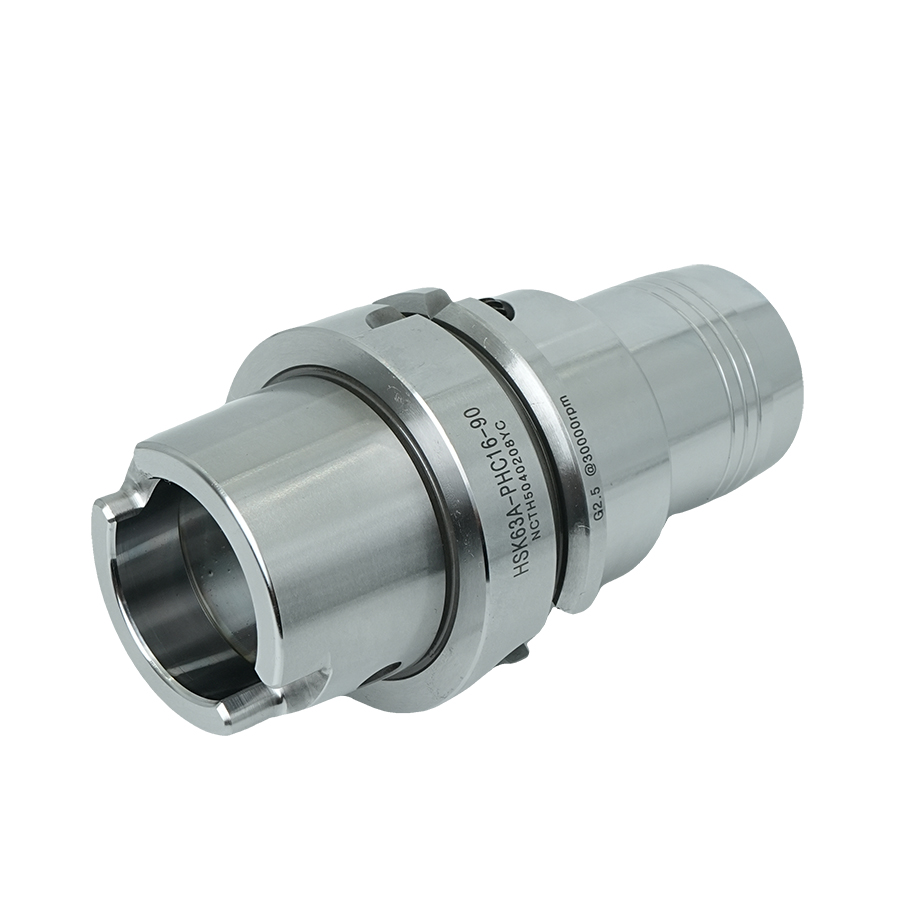

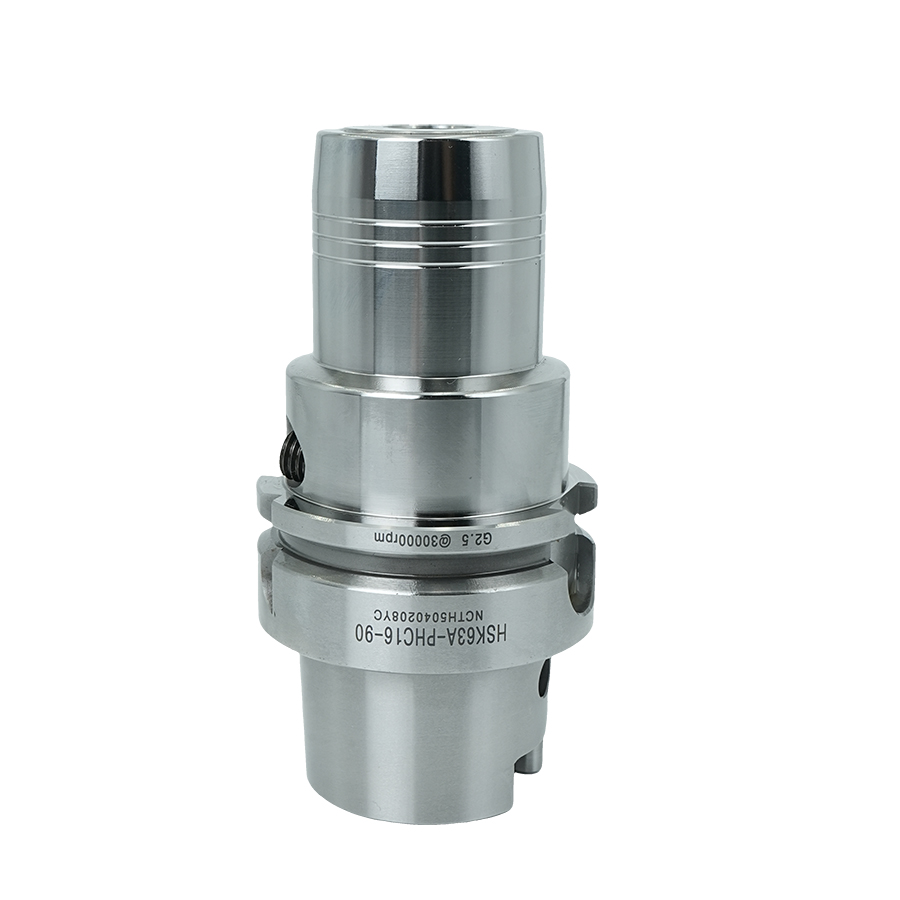

HSK Hydraulic Tool Holder

Our HSK Hydraulic Tool Holder is a premium solution designed for high-precision CNC machining applications. As a leading precision tool holder manufacturer and trusted hydraulic tool holder supplier, we deliver a comprehensive HSK tooling solution that ensures excellent runout accuracy, superior clamping force, and exceptional performance in high speed machining and precision milling.

Whether you are working in metalworking tool holder applications, mold manufacturing, or tool holder for 5-axis machining, our HSK hydraulic chuck and HSK hydraulic collet chuck series offer outstanding stability and repeatability for the most demanding production environments.

Core Advantages

• Ultra-High Precision
  Runout accuracy ≤ 3 μm at 3×D ensures excellent surface finish and extends tool life in precision milling and finishing operations.

• Superior Clamping Force
  The advanced hydraulic mechanism provides consistent clamping pressure, minimizing tool pull-out and vibration for stable CNC machining results.

• Premium Materials & Balance
  Made from high-strength alloy steel, heat-treated and ground to perfection. Dynamically balanced to G2.5 at 25,000 RPM, ideal for high speed machining.

• Easy Tool Change
  Simple hydraulic actuation allows for quick tool replacement without the need for additional collets or nuts, saving setup time in any CNC tooling system.

Typical Applications

• CNC Machining Centers – Ideal for precision drilling, reaming, and light milling operations.

• Mold Manufacturing – Achieve perfect surface finishes on mold cavities and cores.

• Aerospace & Automotive – Excellent for high-tolerance components where reliability and repeatability are critical.

• Tool Holder for 5-Axis Machining – Stable clamping ensures precision even in multi-axis contouring.

Key Selling Points

• High runout accuracy (≤ 3 μm) for improved part quality

• Excellent vibration damping for longer spindle and tool life

• G2.5 balance for safe and smooth high speed machining

• Compatible with a wide range of HSK standards (A63, A100, E40, F63)

• Designed for precision milling and finishing operations

• Backed by a reliable hydraulic tool holder supplier with global support

Technical Parameters

(Customized sizes and special designs available on request.)

Applications by Industry

• Aerospace Engineering – High-tolerance parts, blisks, and structural components

• Automotive Manufacturing – Engine components, transmission parts, precision housings

• Medical Device Production – Surgical instruments, orthopedic components

• General Metalworking Tool Holder Applications – Precision milling, drilling, and boring

Comparison Advantages

Compared to conventional ER collet chucks or shrink-fit holders, the HSK hydraulic tool holder offers:

• Faster Setup – No heat shrink machine required, easy tool change with hex key

• Better Accuracy – Hydraulic clamping provides more consistent runout performance

• Superior Tool Life – Less vibration leads to longer cutting tool lifespan

• High Speed Ready – G2.5 balancing ensures smooth operation at maximum spindle speeds

Frequently Asked Questions (FAQ)

Q1: What is the difference between an HSK hydraulic chuck and a standard HSK tool holder?
A: The HSK hydraulic chuck uses a hydraulic chamber to clamp the cutting tool with high accuracy, providing better runout and vibration damping than mechanical or collet-based holders.

Q2: Can I use the HSK hydraulic collet chuck for high speed machining?
A: Yes, our holders are dynamically balanced to G2.5 and suitable for speeds up to 25,000 RPM, making them perfect for high speed machining.

Q3: What types of tools can I clamp?
A: They are ideal for solid carbide drills, reamers, end mills, and finishing tools where precision is critical.

Q4: Are customized sizes or clamping ranges available?
A: Yes, as a professional precision tool holder manufacturer, we offer customized solutions according to your specific CNC machine and application.
