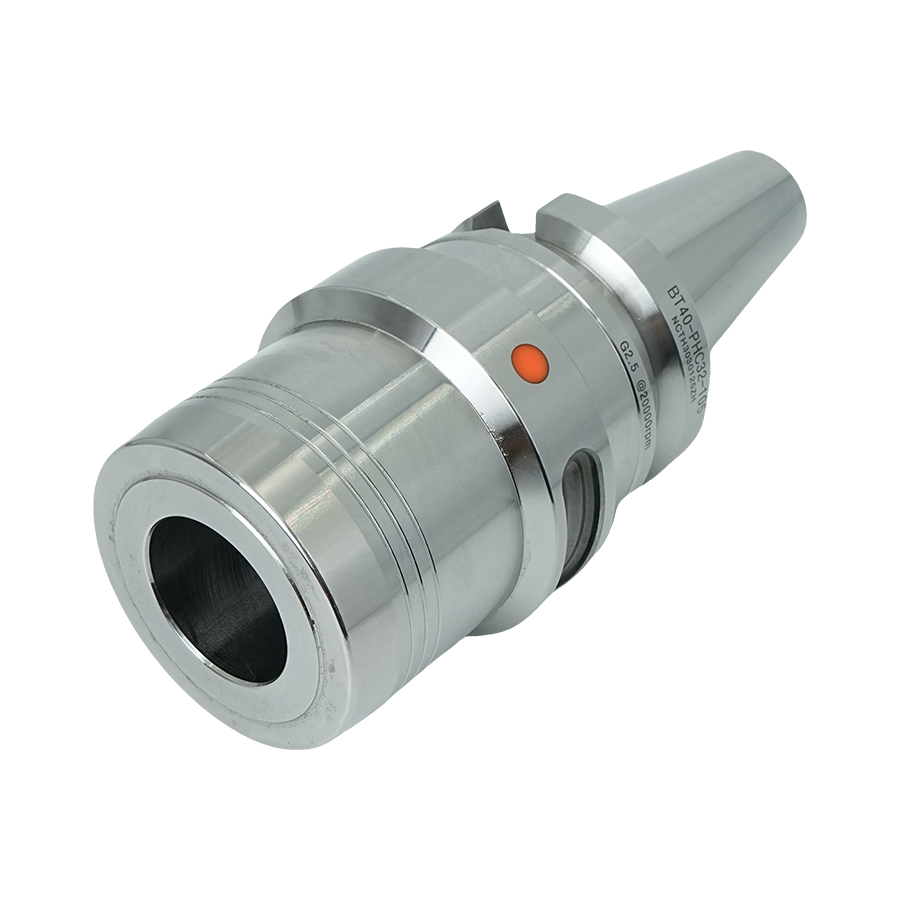

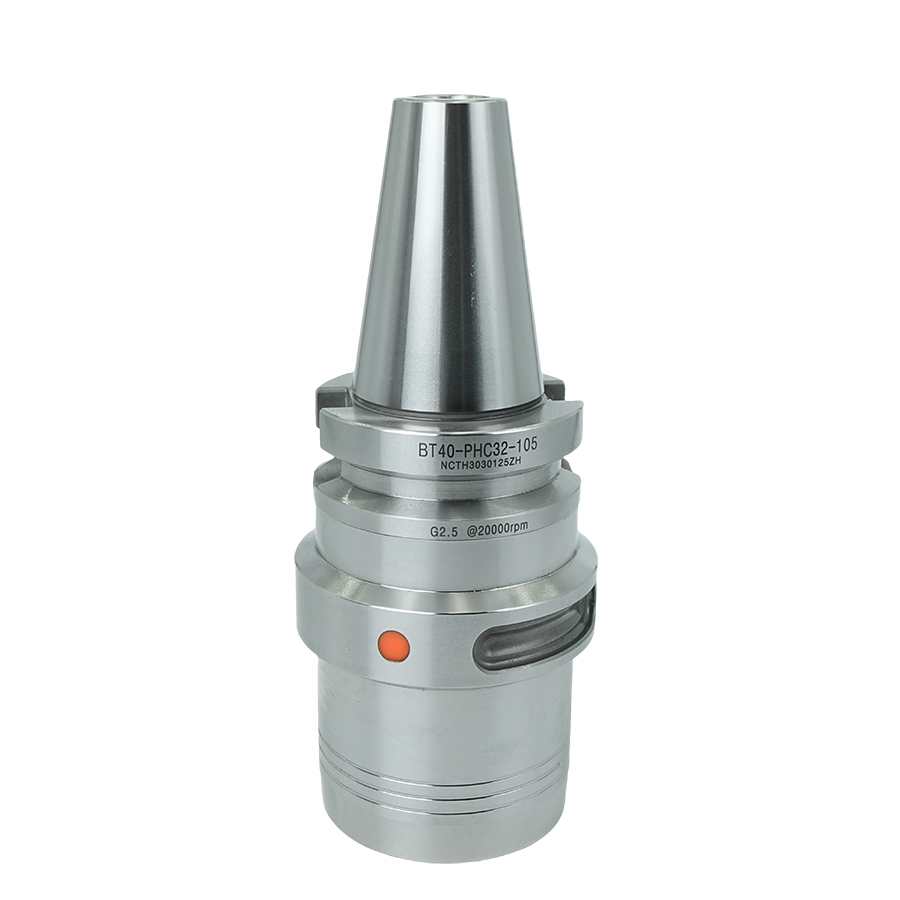

The BT40 Hydraulic Chuck is a premium solution for high-precision CNC machining, offering exceptional accuracy and stability. Unlike conventional mechanical collet chucks, the Hydraulic Clamping System uses hydraulic pressure to provide uniform clamping around the tool shank. This results in superior runout accuracy, vibration reduction, and improved tool life, making it an ideal choice for high-speed finishing and delicate machining tasks.
Our BT Hydraulic Tool Holder series is designed for both roughing and finishing applications in industries such as aerospace, automotive, mold & die, and precision engineering. Combined with a complete Hydraulic Tooling System, the BT40 chuck ensures faster tool changes and consistent performance.
Ultra-High Accuracy: Runout ≤ 3 μm for precision machining.
Quick Clamping: Easy tightening with an Allen key; no heating or shrinking required.
Excellent Vibration Damping: Hydraulic oil absorbs micro-vibrations, improving surface finish.
Dynamic Balance: Ideal for high-speed CNC machining up to 25,000 RPM.
Durable Material: Made from hardened alloy steel for long-term performance.
CNC Machining Centers – High-speed milling and drilling.
Mold & Die Manufacturing – Precision cavity cutting.
Aerospace Components – Tight-tolerance parts machining.
Automotive Industry – Complex and high-precision parts.
Medical Device Manufacturing – Delicate materials requiring stable clamping.
| Model | Balance Grade | Max RPM | Runout Accuracy |
|---|---|---|---|
| BT40 Hydraulic Chuck | G2.5 @ 25,000 RPM | 25,000 RPM | ≤ 3 μm |
| Shank Size | BT40 | – | – |
| Bore Size Range | 6mm – 32mm | – | – |
Customized sizes and lengths available on request.
Hydraulic vs Shrink Fit: Hydraulic chucks allow easy tool changes without special heating equipment, while shrink fit provides maximum rigidity but requires additional machines.
Hydraulic vs ER Collet Chucks: Hydraulic offers higher precision and better vibration control.
Hydraulic vs Milling Chuck: Hydraulic is best for finishing and semi-finishing; milling chucks are better for heavy-duty roughing.
Aerospace & Aviation
Automotive Manufacturing
Mold & Die Industry
High-Precision CNC Engineering
Medical Device Components
Q1: What is a BT40 Hydraulic Chuck used for?
It is used to hold cutting tools with high precision in CNC machines for milling, drilling, and finishing operations.
Q2: How does the Hydraulic Clamping System work?
It uses hydraulic pressure to uniformly grip the tool shank, reducing vibration and improving accuracy.
Q3: Is BT40 Hydraulic Chuck suitable for high-speed cutting?
Yes, it is balanced to G2.5 at 25,000 RPM, making it ideal for high-speed CNC machining.
Q4: What is the CNC Hydraulic Chuck Price?
Prices vary depending on model and quantity. Contact us for detailed quotations.
