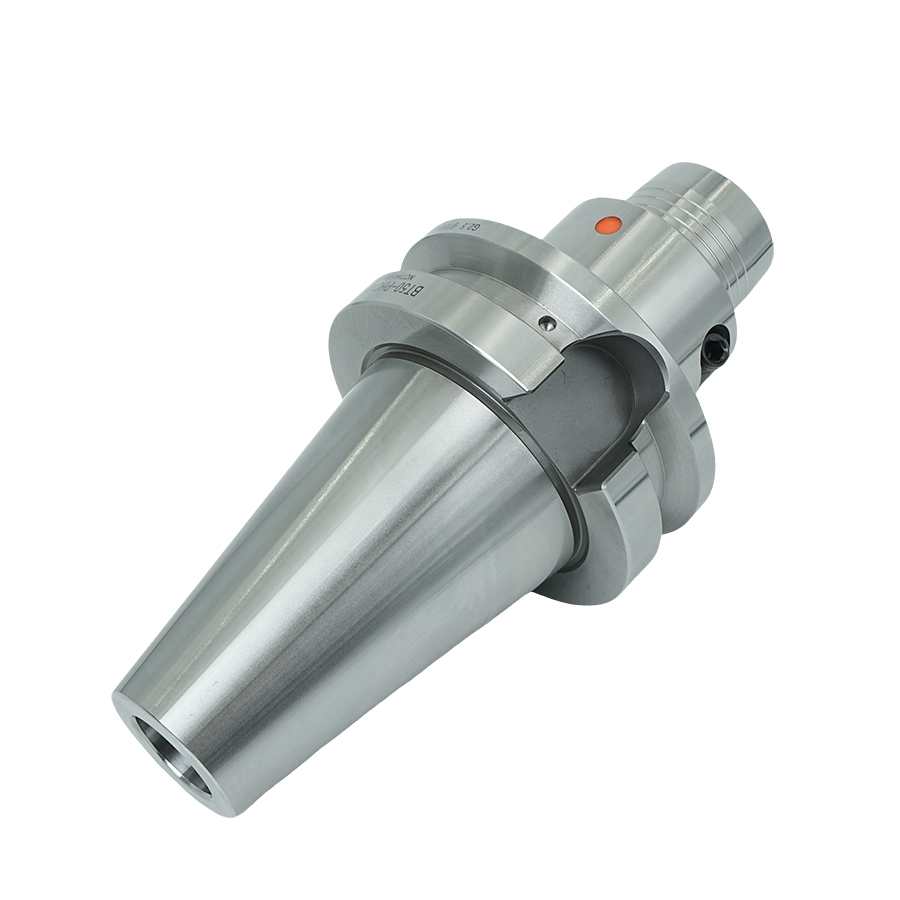

BT30 Hydraulic Tool Holders

The BT30 Hydraulic Tool Holder is one of the most advanced tool clamping systems available for modern CNC machining. Unlike conventional collet chucks or side-lock holders, the BT30 Hydraulic Chuck uses a hydraulic chamber mechanism to provide uniform clamping pressure around the cutting tool shank. This results in exceptional accuracy, reduced vibration, and enhanced surface finish during machining operations.

As CNC technology continues to evolve, manufacturers across industries demand tool holders that offer not only precision but also repeatability, durability, and compatibility with high-speed machining. The hydraulic tool holder series—available in BT30, BT40, and other taper standards—delivers consistent results in applications where precision and tool life are critical.

Whether you are sourcing from a BT30 Hydraulic Tool Holder Manufacturer, partnering with a BT30 Hydraulic Chuck Supplier, or looking for a Custom BT30 Hydraulic Tool Holder solution, our products are engineered to meet international standards. OEM/ODM services are also available, allowing buyers to customize their requirements with a trusted OEM BT30 Hydraulic Tool Holder supplier.

For companies looking for cost-effective yet high-performance solutions, BT30 Hydraulic Chuck Factory China options provide an excellent balance of quality and competitive pricing, serving global markets in aerospace, automotive, mold-making, and precision engineering.

Key Advantages

1. Unmatched Precision

• Runout accuracy ≤ 3 μm ensures the highest possible machining accuracy.

• Stable tool clamping prevents micro-movement, guaranteeing consistent dimensions even in long production runs.

2. Superior Clamping Force

• The hydraulic chamber applies even clamping force across the tool shank.

• Prevents tool pull-out during high-load cutting operations.

• Enhances safety and reliability in both roughing and finishing processes.

3. Vibration Reduction & Surface Finish

• Built-in damping characteristics reduce chatter.

• Improves surface roughness, extending tool life and reducing secondary finishing operations.

• Ideal for high-speed CNC finishing operations.

4. Premium Material & Heat Treatment

• Manufactured from high-grade alloy steel.

• Heat-treated to HRC 56–60 for excellent hardness and wear resistance.

• Anti-rust surface coating prolongs holder service life in demanding environments.

5. High-Speed Balance Capability

• Standard balancing: G2.5 at 25,000 RPM.

• Suitable for high-speed spindles and demanding CNC machining centers.

• Stable even in high-feed, high-speed cutting environments.

6. Flexible Tooling Options

• Available in multiple clamping ranges (Ø6 – Ø20 mm standard, custom available).

• Internal coolant channels for high-performance cutting.

• Compatible with CNC machines requiring BT hydraulic tool holders.

Typical Applications

• CNC Machining Centers: Milling, drilling, boring, and reaming operations requiring high accuracy.

• Mold Manufacturing: Injection molds, die-casting molds, and stamping dies requiring mirror-like finishing.

• Aerospace Industry: Precision machining of turbine blades, structural components, and aerospace-grade alloys.

• Automotive Industry: High-volume production of engine blocks, transmission parts, and lightweight structural components.

• Medical Equipment: High-precision surgical instruments and orthopedic implants where tolerances are extremely tight.

• Precision Engineering & Electronics: Micromachining of electronic housings, connectors, and high-precision components.

Core Selling Points

• Competitive alternatives to Schunk hydraulic holders with similar precision performance.

• Full range available: BT30 hydraulic chuck, BT40 hydraulic tool holder, and other tapers.

• Custom BT30 hydraulic tool holder options to meet unique machining challenges.

• Direct sourcing from BT30 Hydraulic Chuck Factory China ensures scalable supply and lower costs.

• Global distribution networks ensure reliable delivery from a professional BT30 Hydraulic Chuck Supplier.

• OEM and ODM capabilities for private label branding (OEM BT30 Hydraulic Tool Holder).

Technical Parameters

Applications in Industry

• Aerospace: High-strength titanium alloys, composites, aluminum structures.

• Automotive: Mass production requiring speed, consistency, and durability.

• Mold & Die: Complex cavity machining, polishing reduction, and fine detail cutting.

• General Engineering: Prototyping, small-batch precision machining, and R&D.

• Medical: Ultra-precision machining for implants and devices.

Comparative Advantages

Compared to ER Collet Holders:

• Higher precision (≤3 μm runout vs. 5–10 μm).

• Greater rigidity and better tool life.

• Faster and easier tool changes.

Compared to Side-Lock Holders:

• Hydraulic tool holders prevent tool deflection.

• More suitable for high-speed finishing.

• Stronger vibration damping for smoother results.

Compared to Heat Shrink Holders:

• No heating or shrink-fit equipment required.

• Quick tool change with simple Allen key.

• Lower long-term maintenance costs.

FAQ

Q1: What is the accuracy level of a BT30 hydraulic tool holder?
A: Our hydraulic tool holders guarantee ≤3 μm runout accuracy, ensuring ultra-precise machining.

Q2: Do you offer OEM services?

A: Yes, we provide OEM BT30 Hydraulic Tool Holder services, allowing customization of dimensions, clamping range, and branding.

Q3: How does it compare to Schunk hydraulic holders?
A: While Schunk hydraulic holders are premium global products, our BT30 Hydraulic Chuck Factory China provides cost-effective solutions with competitive accuracy and durability.

Q4: Can I order both BT30 and BT40 types?
A: Yes, we manufacture both BT30 hydraulic chuck and BT40 hydraulic tool holder, as well as other taper options.

Q5: What industries commonly use CNC hydraulic chucks?
A: Aerospace, automotive, mold-making, medical device manufacturing, and general CNC precision machining.

The BT30 Hydraulic Tool Holder is the ideal solution for manufacturers seeking high precision, strong clamping force, and reliable performance in CNC machining. By sourcing from a trusted BT30 Hydraulic Tool Holder Manufacturer or BT30 Hydraulic Chuck Supplier, buyers can secure tooling that enhances productivity and reduces operational costs.

With Custom BT30 Hydraulic Tool Holder solutions and OEM BT30 Hydraulic Tool Holder services, our factory provides global customers with flexibility, cost efficiency, and world-class quality. As a professional BT30 Hydraulic Chuck Factory China, we are committed to delivering tool holders that meet the strictest international standards.
